Specifications

Product Type	High-speed semiconductor fuse
Brand	Mersen
Application	Protection of power semiconductors: diodes, thyristors, IGBT and MOSFET devices
Utilization Category	aR
Breaking Capacity	200 kA
Rated Current	800 A
Rated Frequency	50/60 Hz
Rated Voltage	690 V AC
Speed Class	Ultra-fast acting
Body Style	Square body
Connection/Termination	End contact terminals
Indicators	with striker
Material	Silver-plated contacts; non-magnetic
Mounting	Bolted / end-contact mounting
Size Code	Body size 32
Weight	0.55 kg
Standards and Approvals	IEC 60269-1; IEC 60269-4; UL recognized file E76491

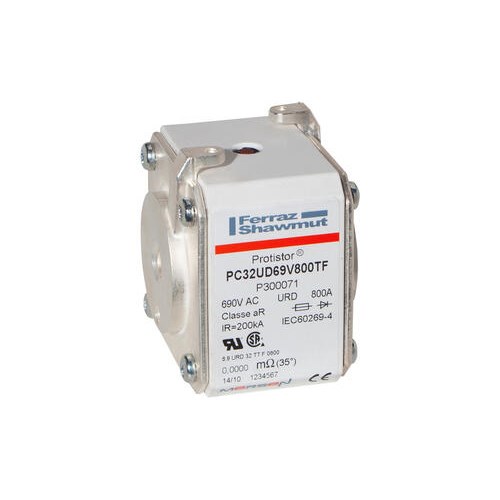

MERSEN FUSE LINK 800A END CONTACT FOR SEMICONDUCTOR PROTECTION BODY SIZE 32, 660V P300071
