Specifications

Product Type	Fuse Link
Brand	Mersen
Application	Semiconductor protection
Breaking Capacity	170 kA
Rated Current	800 A
Rated Voltage	690 V
Speed Class	Ultra-fast
Body Style	Square body
Connection/Termination	NH blade
Indicators	Double indicator
Material	Ceramic body, silver plated contacts
Size Code	NH Size 3
Depth	89 mm
Length	150 mm
Weight	1.04 kg (Approx.)
Width	72 mm
Standards and Approvals	IEC 60269-4

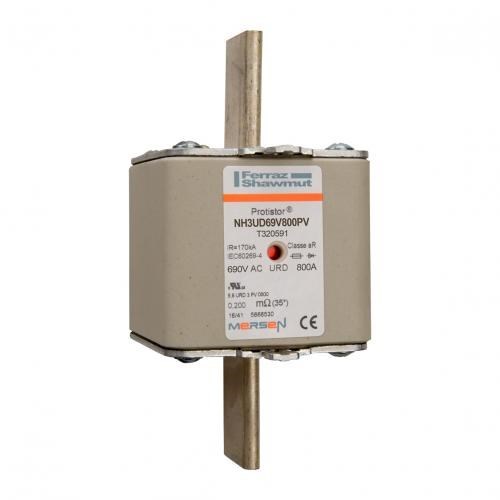

MERSEN FUSE LINK 800A NH3 DIN BLADE FOR SEMICONDUCTOR PROTECTION 690V NH 3 T320591
