Specifications

Product Type	Semiconductor fuse link
Brand	Mersen
Series	Protistor
Application	Semiconductor protection
Utilization Category	aR
Breaking Capacity	200 kA
Power Loss	19 W
Rated Current	80 A
Rated Voltage	690 V
Speed Class	aR
Body Style	Square body
Connection/Termination	Flush ends
Indicators	Striker
Material	Body: Ceramic; Contact: Silver plated copper
Mounting	Bolted
Size Code	Size 30
Stud Size	Metric threaded terminals
Length	50.6 mm
Weight	0.25 kg (Approx.)
Width	40 mm
Standards and Approvals	IEC 60269-1 & -4

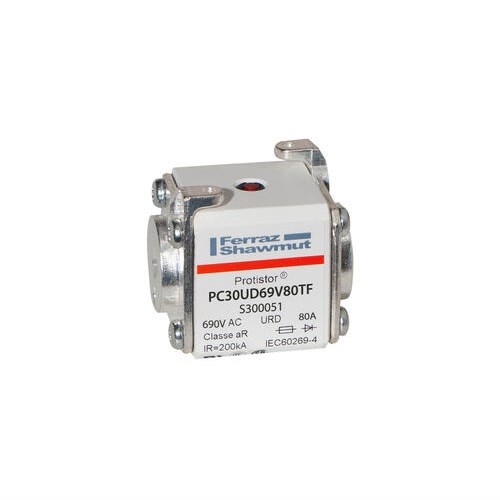

MERSEN FUSE LINK 80A END CONTACT FOR SEMICONDUCTOR PROTECTION BODY SIZE 30, 660V S300051
