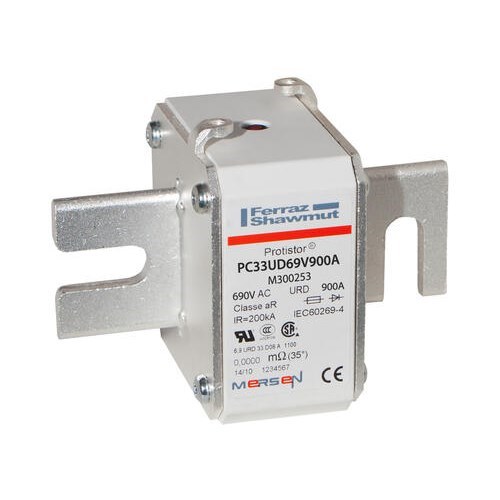

MERSEN FUSE LINK 900A 80MM FIXING FOR SEMICONDUCTOR PROTECTION BODY SIZE 33, 660V M300253

Product Code: M300253

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Fuse Link
Brand Mersen
Application Semiconductor
Utilization Category aR
Breaking Capacity 200 kA
Rated Current 900 A
Rated Voltage 690 V AC
Body Style Square body
Connection/Termination DIN blade
Indicators Striker
Material Body:Ceramic, silver-plated contacts
Size Code Size 33
Weight 0.78 kg (Approx.)
Standards and Approvals IEC 60269-4, UL, CSA, CE, RoHS

Documents

IPD Product Catalogue V17
