Specifications

Product Type	Class K5 fast-acting fuse
Brand	Mersen
Series	OT
Application	General purpose branch-circuit and equipment protection
Utilization Category	Class K5
Breaking Capacity	50 kA
Rated Current	60 A
Rated Frequency	50/60 Hz
Rated Voltage	250 V AC/DC
Speed Class	Fast acting
Body Style	Cylindrical / ferrule
Connection/Termination	Ferrule end caps
Indicators	without indicator
Mounting	Clip-in fuse holder
Size Code	21 x 76
Length	76 mm
Width	Ø 21 mm
Standards and Approvals	UL 248-9; CSA C22.2 No. 248.9

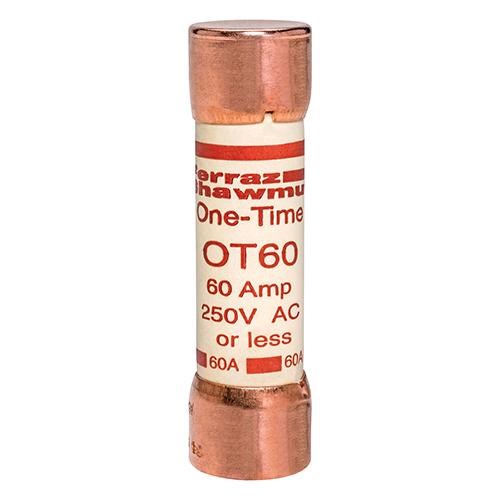

Mersen OT60 Fast-Acting General Purpose Fuse 60A 250VAC/DC Class K5 0.81 in Dia x 3 in L Ferrule Terminal
