Specifications

Product Type	Fuse Link
Brand	Mersen
Series	OTS
Application	Residential and small commercial installations
Breaking Capacity	50 kA AC, 20 kA DC
Rated Current	110 A
Rated Frequency	50/60 Hz
Rated Voltage	600 V AC / 300 V DC
Speed Class	Fast-acting
Body Style	Ferrule
Material	Body: Poly tube, Terminal: Tin-Plated Copper
Mounting	Clip
Length	181 mm
Weight	0.24 kg (Approx.)
Width	Ø 40 mm

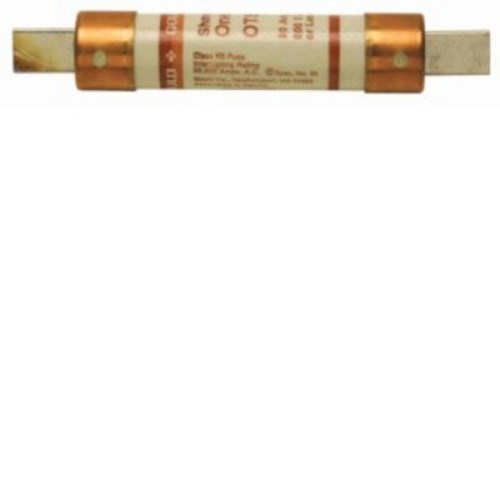

Mersen OTS110 Fast-Acting General Purpose Fuse 110A 600/300VAC/DC Class K5 1.81 in Dia x 9.63 in L Blade Terminal
