Specifications

Product Type	Fast Acting Fuse
Brand	MERSEN
Body Material	Poly Tube
Body Size	2.56 in Dia x 11.63 in L
Body Style	Blade
Breaking Capacity	50 kA
Connection/Terminal Material	Tin Plated Copper
Fuse Class	Class K5
Insulation Material	PolyTube
Mounting Type	Clip
Rated Current	300 A
Rated Frequency	50/60 Hz
Rated Voltage	600/300 VAC/VDC
Terminal Type	Blade
Weight	3.21 lb

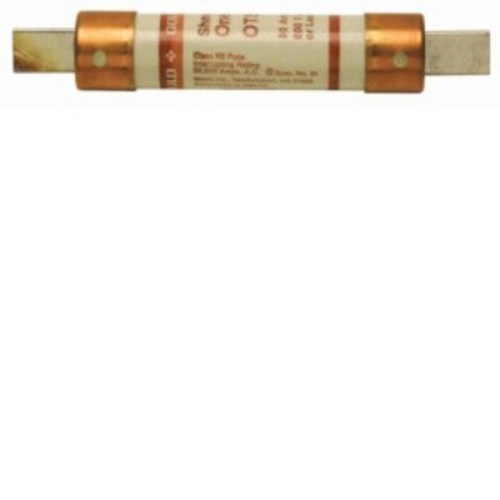

Mersen OTS300 Fast-Acting General Purpose Fuse 300A 600/300VAC/DC Class K5 2.56 in Dia x 11.63 in L Blade Terminal
