Specifications

Product Type	Class K5 fast-acting fuse
Brand	Mersen
Series	OTS
Application	General purpose branch-circuit and equipment protection
Utilization Category	Class K5
Breaking Capacity	50 kA
Rated Current	500 A
Rated Frequency	50/60 Hz
Rated Voltage	600 V AC / 300 V DC
Speed Class	Fast acting
Body Style	Blade type
Connection/Termination	Blade terminals
Indicators	without indicator
Mounting	Blade / bolted mounting
Size Code	Class K5 blade
Weight	2.3133 kg
Standards and Approvals	UL 248-9; CSA C22.2 No. 248.9

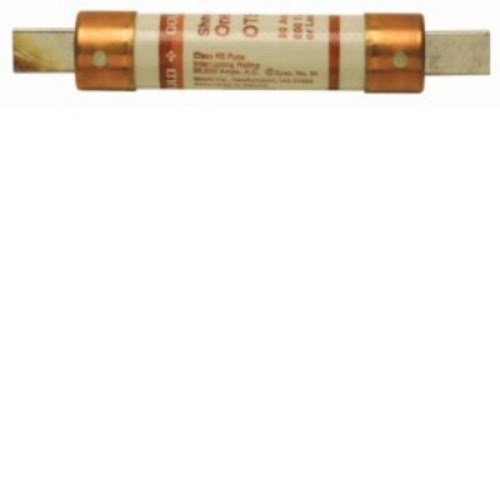

Mersen OTS500 Fast-Acting General Purpose Fuse 500A 600/300VAC/DC Class K5 3.12 in Dia x 13.38 in L Blade Terminal
