Specifications

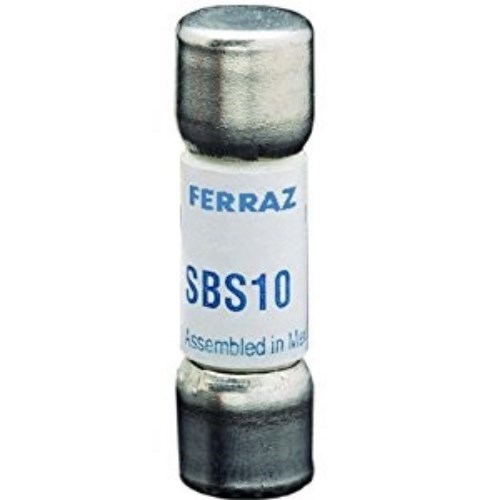

Product Type	Midget fuse
Brand	Mersen
Series	SBS
Application	Control circuits, lighting ballasts, meter circuits and electronic circuits
Breaking Capacity	100 kA RMS
Rated Current	6 A
Rated Frequency	50/60 Hz
Rated Voltage	600 V AC
Speed Class	Fast-acting
Body Style	Ferrule / cylindrical
Connection/Termination	Ferrule end caps
Indicators	No
Material	Fiberglass body
Size Code	35 x 10
Length	35 mm
Weight	0.0073 kg
Width	Ø 10 mm
Standards and Approvals	UL 248-14, CSA C22.2 No. 248.14
