Specifications

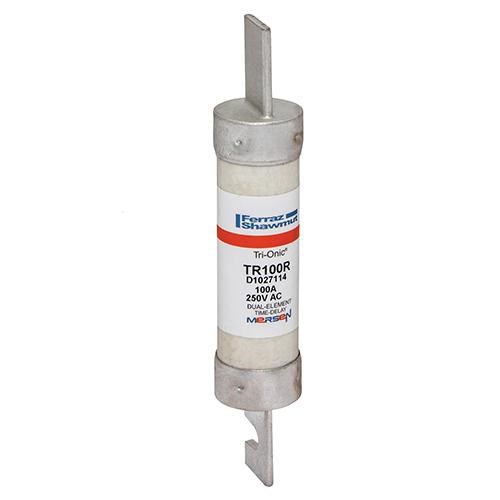

Product Type	Fuse Link
Brand	IPD
Series	TR
Application	Overcurrent protection of motors, transformers, service entrance equipment, feeders and branch circuits
Breaking Capacity	200 kA
Rated Current	100 A
Rated Voltage	250 V AC
Speed Class	Time Delay
Body Style	Cylindrical
Indicators	Non-Indicating
Material	Body: Poly tube, Terminal: Tin-Plated Copper
Size Code	Class RK5
Length	149.4 mm
Weight	0.14 kg (Approx.)
Width	Ø 27 mm
Standards and Approvals	UL 248-12; CSA C22.2 No.248.12
