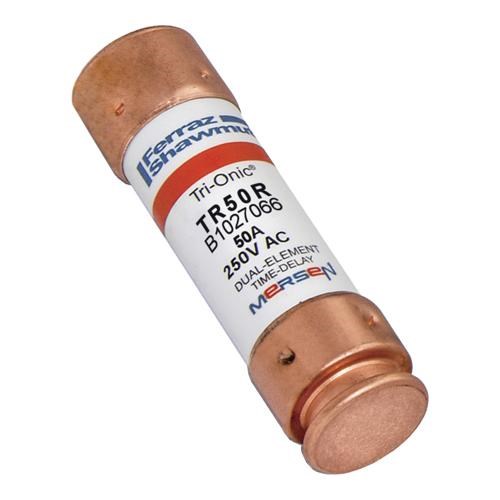

Specifications

Product Type	Fuse Link
Brand	Mersen
Series	TR-R
Application	Motors, mains, feeders, transformers, service equipment, and general-purpose circuits.
Utilization Category	Class RK5
Breaking Capacity	200 kA AC / 20 kA DC
Rated Current	50 A
Rated Frequency	50/60 Hz
Rated Voltage	250 V AC / 250 V DC
Speed Class	Time Delay
Body Style	Cylindrical
Connection/Termination	Rejection ferrule end caps
Indicators	No indicator
Material	Body: Fiberglass, Terminal: Tin plated copper
Mounting	Clip
Size Code	Class RK5
Length	76 mm
Weight	0.054 kg (Approx.)
Width	Ø21 mm
Standards and Approvals	UL Listed to UL 248-12; CSA C22.2 No. 248.12
