Specifications

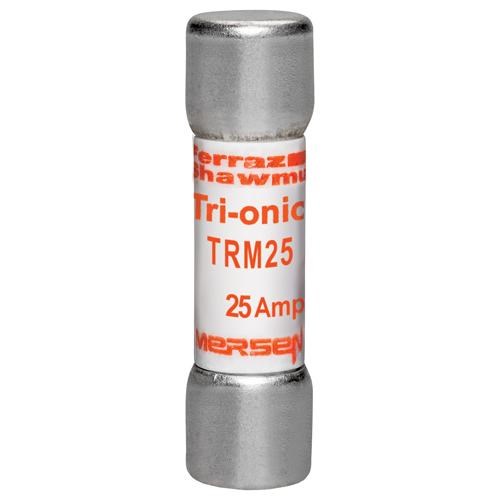

Product Type	Midget / supplemental fuse
Brand	Mersen
Series	TRM
Application	Supplemental protection for small motors, transformers, lighting, and high-inrush control circuits.
Breaking Capacity	10 kA AC
Rated Current	25 A
Rated Frequency	50/60 Hz
Rated Voltage	250 V AC
Speed Class	Time Delay
Body Style	Cylindrical
Connection/Termination	Ferrule end caps
Fuse Holder	UltraSafe fuse holders / midget fuse blocks
Indicators	without indicator
Mounting	Midget fuse holder / fuse block
Size Code	10 x 38
Length	38 mm
Weight	0.0059 kg (Approx.)
Width	Ø 10 mm
Standards and Approvals	UL 248-14; CSA C22.2 No. 248.14
