Specifications

Product Type	Fuse link
Brand	Mersen
Series	TRS-R
Application	Motors, mains, feeders, transformers, service equipment, and general-purpose circuits.
Utilization Category	Class RK5
Breaking Capacity	200 kA AC / 100 kA DC
Rated Current	100 A
Rated Frequency	50/60 Hz
Rated Voltage	600 V AC / 600 V DC
Speed Class	Time Delay
Body Style	Cylindrical
Connection/Termination	Blade terminals
Fuse Holder	Class RK5 fuse blocks
Indicators	without indicator
Material	Fiberglass body; high-grade silica filler; metal end caps/terminals
Mounting	Class RK5 fuse blocks
Size Code	34 x 200
Length	200 mm
Weight	0.2849 kg (Approx.)
Width	Ø 34 mm
Standards and Approvals	UL 248-12; CSA C22.2 No. 248.12; DC listed to UL 248

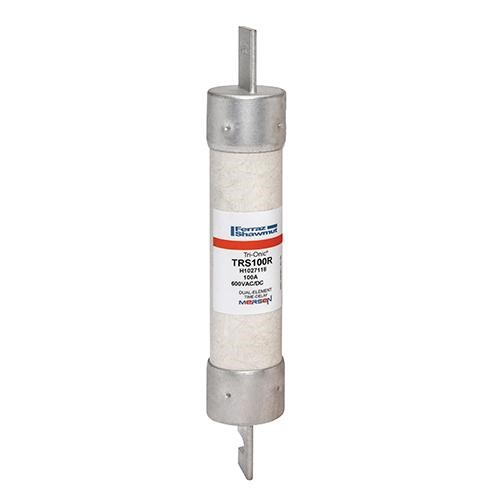

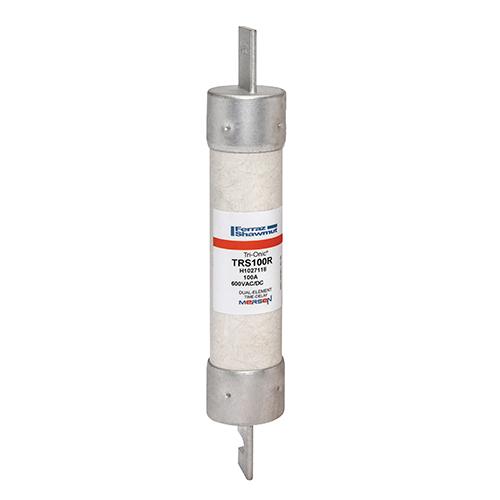

Mersen TRS100R Time Delay Current-Limiting Fuse 100A 600VAC/DC 34mmDia 150mm L Class RK5 200kA Clip Mount Blade
