Specifications

Product Type	Fuse link
Brand	Mersen
Series	TRS-R
Application	Motors, mains, feeders, transformers, service equipment, and general-purpose circuits.
Utilization Category	Class RK5
Breaking Capacity	200 kA AC / 100 kA DC
Rated Current	250 A
Rated Frequency	50/60 Hz
Rated Voltage	600 V AC / 600 V DC
Speed Class	Time Delay
Body Style	Cylindrical
Connection/Termination	Blade terminals
Fuse Holder	Class RK5 fuse blocks
Indicators	without indicator
Material	Fiberglass body; high-grade silica filler; metal end caps/terminals
Mounting	Class RK5 fuse blocks
Size Code	66 x 295
Length	295 mm
Weight	1.4243 kg (Approx.)
Width	Ø 66 mm
Standards and Approvals	UL 248-12; CSA C22.2 No. 248.12; DC listed to UL 248

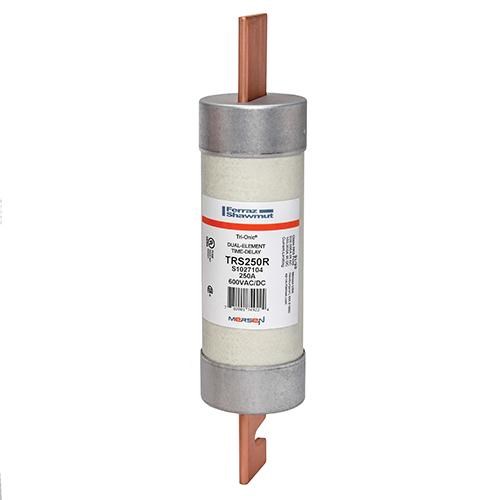

Mersen TRS250R Time Delay Current-Limiting Fuse 250A 600VAC/DC 66mmDia 199mm L Class RK5 200kA Clip Mount Blade
