Specifications

Product Type	Time Delay Current-Limiting Fuse
Brand	MERSEN
Body Material	Poly Tube
Body Size	1.06 in Dia x 5.5 in L
Body Style	Ferrule long
Breaking Capacity	200 kA
Connection/Terminal Material	Copper
Diameter	27 mm
Fuse Class	Class RK5
Insulation Material	PolyTube
Length	139 mm
Mounting Type	Clip
Rated Current	40 A
Rated Frequency	50/60 Hz
Rated Voltage	600/300 VAC/VDC
Terminal Type	Ferrule
Weight	0.319 lb

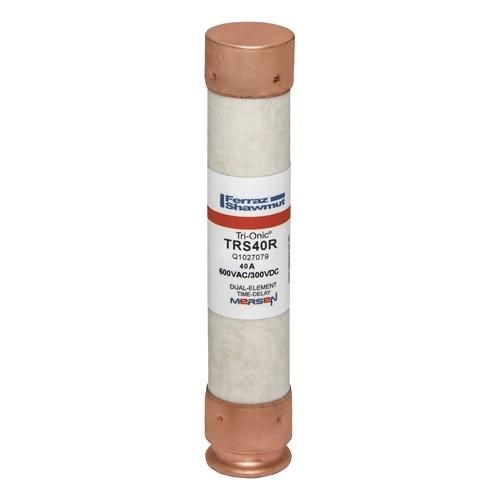

Mersen TRS40R Time Delay Current-Limiting Fuse 40A 600/300VAC/DC 27mmDia 139mm L Class RK5 200kA Clip Mount Ferrule
