Specifications

Product Type	Fuse holder
Brand	Mersen
Series	HelioProtection US15M1HEL
Application	Utility-scale photovoltaic applications; 1500 VDC combiner boxes
Breaking Capacity	50 kA DC SCCR
Rated Current	32 A
Rated Voltage	1500 V DC
Cable Entry	Bus bar / wire entry
Colour	White
Connection/Termination	Bus bar termination clamp; wire terminal
Fuse Holder	HP15M fuse series
Indicators	with LED
Material	UL 94 V-0 polymer
Mounting	35 mm DIN rail
Size Code	10/14 x 85
Length	142.8 mm
Weight	0.0084 kg
Width	22.4 mm
IP Rating	IP20
Standards and Approvals	UL 4248-19; CSA C22.2 No. 4248.19

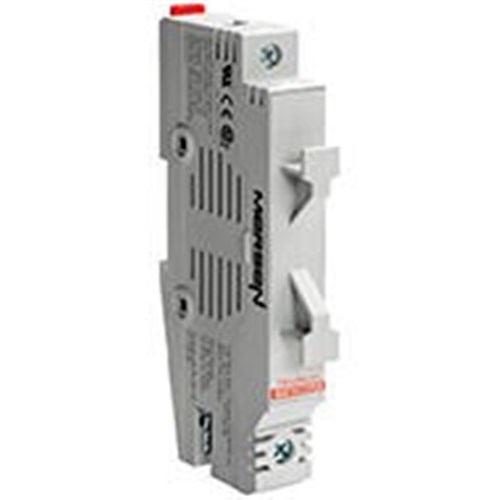

Mersen US15M1HEL Fuse Holder 32A 1-P 1500VDC DIN Rail Mount 10mm Dia x 85mm L Fuse
