Techno Modular Switchboard System
Bringing you the industry-leading, fully compliant switchboard solution with a proven track record in the Australian market.
The Techno Modular Switchboard System from IPD and Elsteel is industry leading and one of the most trusted Switchboard Systems in the Australian market. Over the past 40 years Techno has had ongoing development and innovative improvements to ensure the system continues to meet the high standards that Techno customers are familiar with. The Techno system is fully design verified and compliant with the latest industry standards.
Our Capabilities
NSW
Stadium Australia | M5 East Tunnel | Parramata Rail Link
| Telstra | Woolworths | Westmead Hospital | Sydney
Water | RAAF Base Williamtown
VIC
Citipower | Melbourne Water | South East Water |
Gippsland Water | Alfred Hospital | Next DC Data
Centre
QLD
Brisbane Harbour Cruise Ship Terminal | QLD
Emergency Operations Centre | Australian Super
Hornets Base Amberley (RAAF) | Townsville Waster Water
Treatment Plant | Jewel Gold Coast
TAS
Royal Hobart Hospital | Rio Tinto Bell Bay Smelter
Tasmanian Forestry Saw Mills | Elwick Race Course Hobart
WA
Perth Metro Rail | Curtin University | CBH Group | BHP
Billiton Yandi III | Cloudbreak Iron Ore (FMG)
SA
Playford Power Station | Western Mining Company |
Onesteel Whyalla | Heathgate Uranium Plant
NZ
Huntly Power Station | Telecom NZ | Watercare Services
| Fontera Te Rapa Dairy Factory | New Zealand Post
NT
Newmont Granites Gold Mine
-
-
-
-
Products

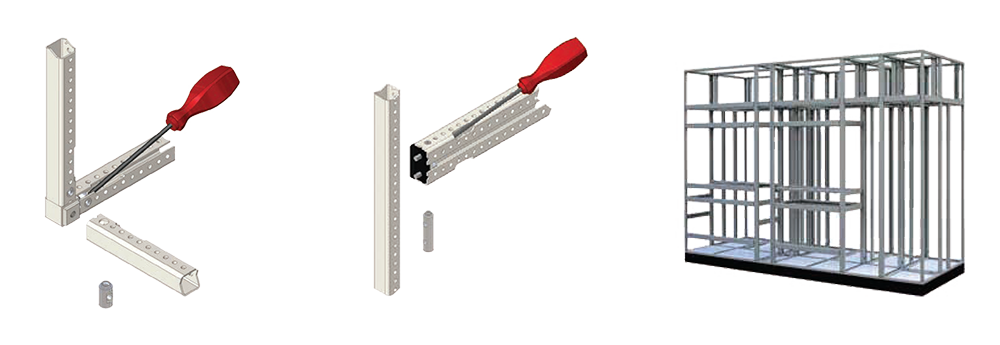

Framework
- The system is fully Modular around a 200 mm Modular grid
- The framework is made up of plinths, corners, corner bars and cross bars from 200 mm to 2400 mm
- All bolted together with captive screws to ensure rigidity and good earthing
- Easily assembled with just 5 & 6 mm ball head drivers

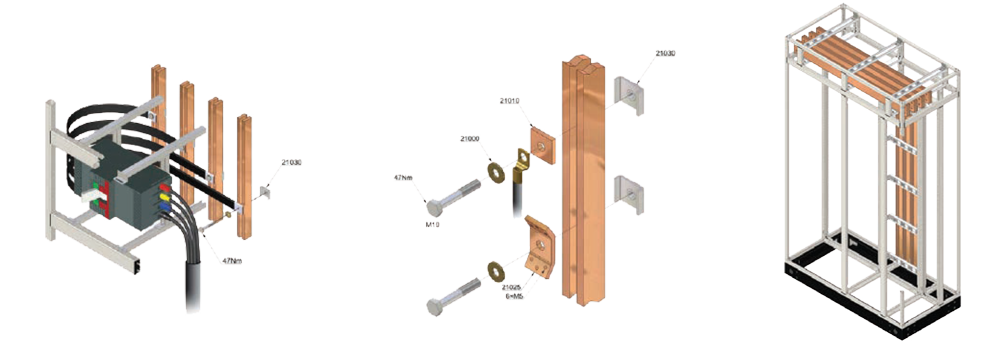

Busbar Systems & Connections
- 10 mm bars with 2 bars per phase arrangement
- Rated up to 7100 A, 100 kA/1s
- A variety of bus holder options to provide flexibility in design
- A choice of copper connectors to connect bars or devices
- Operational voltages of 415 / 690 / 1000 V AC

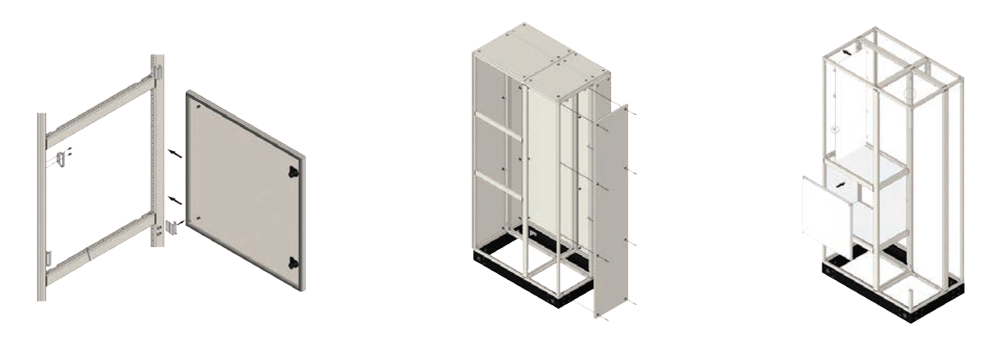

Internal Equipment & Cladding
- Separation plates, mounting plates, hinged and fixed escutcheons, internal and external gland plates
- Doors and covers with high quality polyurethane formed gaskets to offer sealing up to IP55
- Choice of grey and orange ex-stock, custom colours available on request

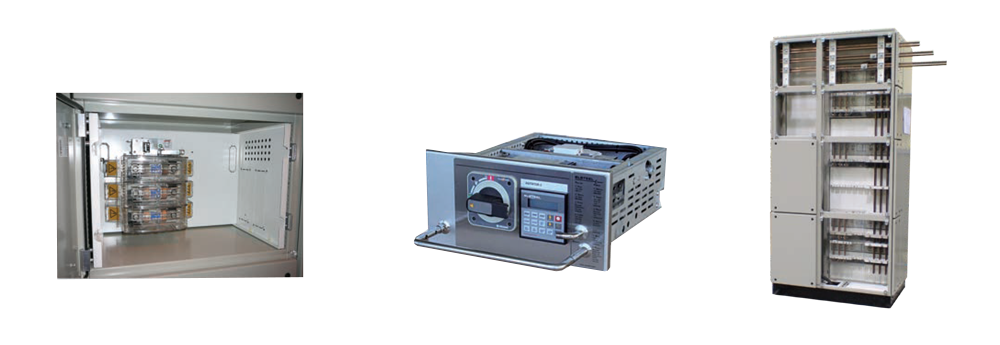

Compartments – Form 3 & 4
- Fixed cells, supplied flat in standard Modular sizes up to 600 W x 600 H. 800 W cells on request
- Demountable cells up to 600 W x 600 H, rated 630 / 800 A
- Fully withdrawable cells with 4 positions, in sizes up to 600 W x 600 H rated up to 630 A
- Cable boxes for Form 4b
- All compartments tested for internal arcing fault containment

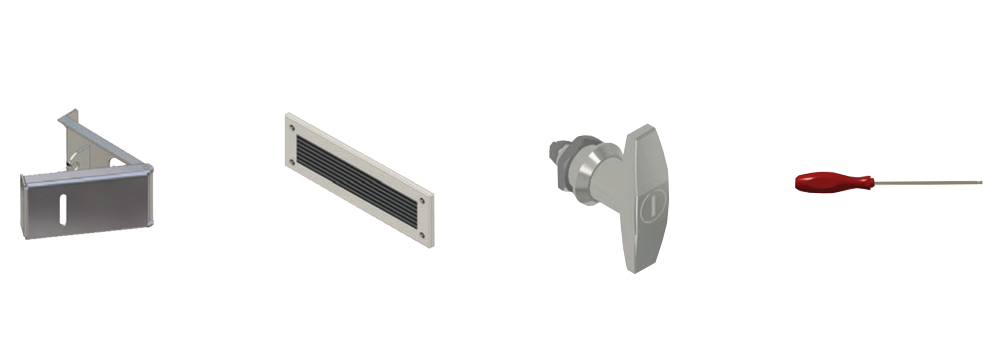

Accessories & Tools
- A choice of locks, locking systems and seals
- Equipment mounting accessories
- Louvre covers
- Assembly tools
- Cable holders

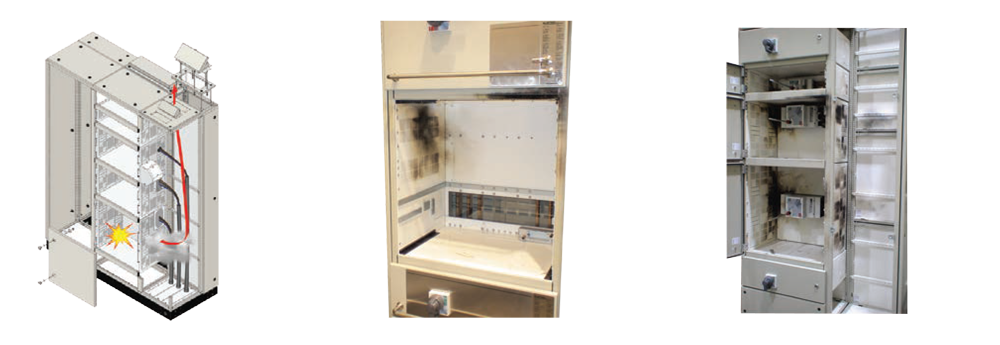

Internal Arcing Fault Containment
The Techno system has been tested for internal arcing fault containment to both the relevant AS / NZS and IEC standards. The overpressure is safely dissipated by using specially designed filters and vented out via chimneys installed at the top of the switchboard while still maintaining the IP rating. The advantages of the Techno design are:
- This advanced design provides enhanced plant and operator safety by diverting any gases to the top away from the operator
- The space in the electrical room is optimised by not having to provide isolation areas around the switchboard
- All products used in the design are standard stock lines which does not affect design changes or lead times
| Product Specifications |
Description |
| GENERAL DATA |
| Applications |
Low voltage power distribution, motor control centres, PLC & DCS panel boards |
| Installation |
Indoor |
| Mounting possibilities |
Floor standing / Wall mounting |
| Standard colours |
Grey RAL7032 / Orange RAL2000 (non standard colours on request) |
| Coating |
Epoxy / polyester powder, thickness > 50 µm |
| MECHANICAL DATA |
| Field/Tier Arrangement |
Front connected / back to back |
| Cable Entry |
Top / Centre / Bottom |
| Access |
Front / Rear |
| IP Rating |
IP43, IP54, IP55 |
| IK Rating |
IK 08 / IK 10 |
| Form of Segregation |
1, 2a, 2b, 3a, 3b, 4a, 4b |
Max. dimensions of a transport section
(Basic module 200 x 200 x 200) |
Width - 2400 mm, Height - 2400 mm, Depth - 2400 mm |
| ELECTRICAL DATA |
| Rated operations voltage (Ue) |
415 / 690 / 1000 V |
| Rated insulation voltage (Ui) |
690 / 1000 V |
| Rated frequency (f) |
50 Hz |
| Rated impulse voltage (Uimp) |
6-8 kV |
| Rated current (In) for TM panels |
Up to 7100 A |
| Rated short time current (Icw) |
Up to 100 kA / 1s & 50 kA / 3 s |
| Earthing systems |
TN-C, TN-S, TN-C-S, TT, IT |
| Standards & Protection |
| Pollution degree |
3 |
| Design verification test |
Design verified according to AS / NZS 61439 - 1&2 : 2016 |
| Internal Arcing Fault test |
According to IEC TR 61641 & AS / NZS 61439 Appendix ZD |
| Vibration test |
According to IEC 68-2-6 & IEC 68-2-36 |
| Seismic test |
According to IEC 68-3-3 |
| Lloyd’s Register |
Certificate No. 02 / 70003 |
| Components |
DESCRIPTION |
| Plinth |
2 mm mild steel powder coated in Black (RAL 9005) / 3 mm HDG |
| Corners |
Aluminium die cast powder coated in Grey (RAL 7032) or Orange (RAL 2000) |
| Corner Bar / Cross Bar |
Electro galvanised 2 mm powder coated in Grey (RAL 7032) or Orange (RAL 2000) |
| Doors / Covers |
Mild steel 1.5 mm powder coated in Grey (RAL 7032) or Orange (RAL 2000) / 2 mm available as an option |
| Door Stabiliser |
Mild steel 20 x 20 x 1.5 square pipe powder coated in Grey (RAL 7032) or Orange (RAL 2000) |
| Mounting Plate |
Mild steel 2 mm powder coated in White (RAL 9010) |
| Separation Plate |
Mild steel (2 x 2, 2 x 4, 2 x 6, 4 x 4, 4 x 6) 1 mm, All other sizes 1.2mm, Painted White RAL 9010 / PC
2 mm |
| Flat Cover |
Mild steel 1.5 mm painted in Grey (RAL 7032) or Orange (RAL 2000) |
| Panel Assembly Kit |
Mild steel 3 mm Zinc plated |
| Cable Holder |
Mild steel 1.5 mm to 2 mm painted White (RAL 9010) |
| ACB Mounting Channel |
Mild steel 3 mm painted White (RAL 9010) |
| Arc Fault Separation Plate |
Mild steel 1.0 mm (4.4) / 1.5 mm painted White (RAL 9010) |
| Fixed Type Compartments |
Mild steel 1.2 mm painted White (RAL 9010) |
| Escutcheon Doors |
Mild steel 1.5 mm painted White (RAL 9010) |
| Busbar Holder |
Self-extinguishing fibre material / reinforced PC |
| Fish Plate |
Copper 10 mm |
| H to V Connectors |
Copper 10 mm |
| Copper Spacers |
Copper, 30 mm diameter, 5 to 50 mm in thickness |
| Bracket for Earth Conductor |
Mild steel 3 mm Zinc plated |
