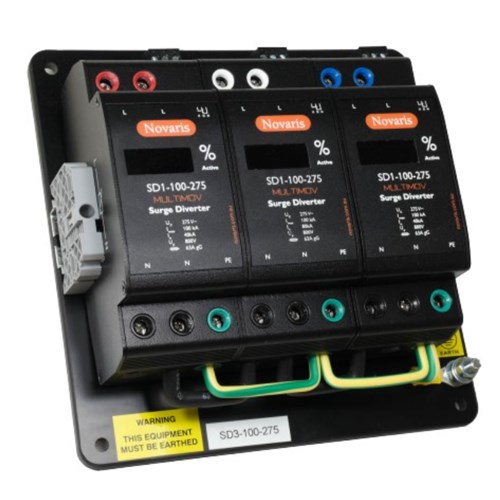

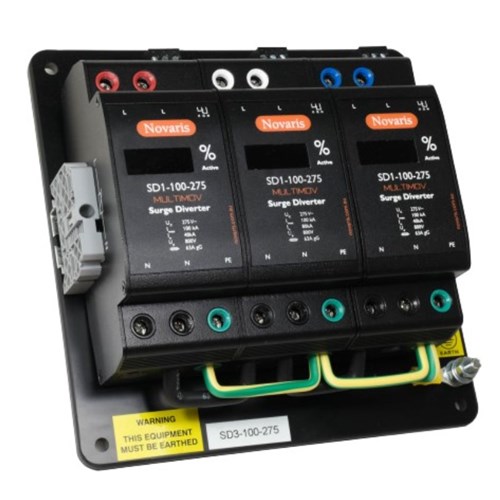

Novaris SD3-100-275 Surge Diverter 12.5kA 3 PH 100kA 230VAC Shunt Panel Mounting Aluminium IP20

Product Code: SD3-100-275

1

Specifications

Product Type	Surge Diverter
Brand	NOVARIS
Series	SD3
Connection Type	Shunt
Contact Configuration	SPDT
Degree of Protection	IP20
Depth	200 mm
Display Type	Digital
Fuse Rating	63 A
Height	80 mm
Humidity	5-95%
Lightning Impulse Current	12.5 kA
Material	Aluminium
Modes of Protection	L-L, L-N
Mounting Type	Panel
Number of Ports	1
Operational Temperature	-40 to 70 deg C
Phase	3
Rated Current	100 kA (L-N)
Rated Short Circuit Current	50 kA
Rated Voltage	230 VAC
Response Time	<25 ns (L-N)
Standards and Approvals	IEC 61643-11:2011, AS/NZS 1768:2007, UL 1449 3rd Edition, IEEE 62.41.2:2002
Tightening Torque	0.5 N-m, 2 N-m
Voltage Protection Level	<800 V
Weight	2.68 kg
Width	200 mm
