Specifications

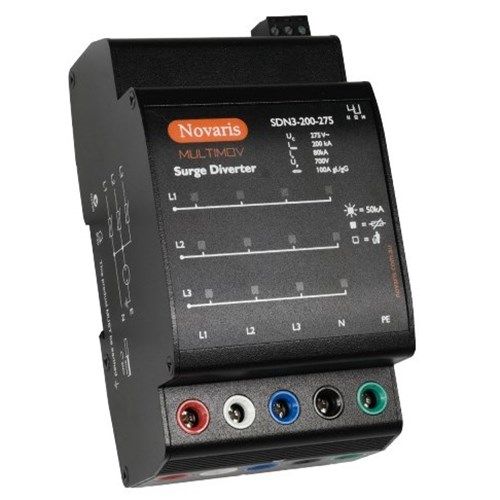

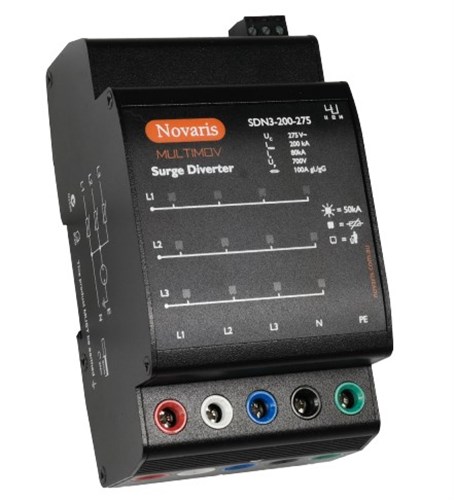

Product Type	Surge Diverter
Brand	Novaris
Series	SDN3
Application	Industrial and commercial main switchboards
Lightning Impulse Current Iimp (10/350µs)	12.5kA (L-N)50kA (N-PE)
Max. Backup Fuse	80A
Max. Continuous Operating Voltage (AC/DC)	275VAC (L-N)255VAC (N-PE)
No. of Poles (Total)	3
Nominal Voltage	230V
Nominal Discharge Current (8/20µs)	40kA (L-N)50kA (N-PE)
Voltage Protection Level Up	<1000V
Maximum Discharge Current Imax (8/20µs)	100kA
Alarm Contact	SPDT
Mounting Method	DIN Rail
Terminal Size	Terminal capacity - power 16mm²Terminal capacity - alarms 2.5mm²
Depth	69 mm
Height	141 mm
Width	80 mm
Operating Temperature	-40°C - 70°C
IP Rating	IP20
