Specifications

Product Type	Photovoltaic Surge Diverter
Brand	Novaris
Connection Type	Shunt
No. of Phases	2
Communication Ports	1
Rated Current	100 kA (L-L), 100 kA (L-PE)
Rated Voltage	1000 VDC
Connecting Capacity	35 sq-mm Power
Material	Thermoplastic
Mounting Type	TS35 DIN Rail
Humidity	5-95%
Operating Temperature	-40 to 80 deg C
IP Rating	IP20
Standards and Approvals	EN50539-11

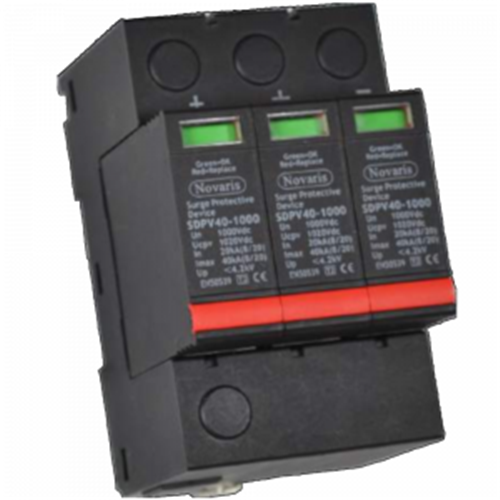

Novaris SDPV-100-1000 Photovoltaic Surge Diverter 100 kA (L-L) 100 kA (L-PE) 1000VDC 40 kA 2 Ph
