Specifications

Product Type	Photovoltaic Surge Diverter
Brand	Novaris
Connection Type	Shunt
No. of Phases	2
Communication Ports	1
Rated Current	50 kA (L-L), 50 kA (L-PE)
Rated Voltage	1000 VDC
With Base	90 Mounting
Connecting Capacity	35 sq-mm Power, 1.5 sq-mm Alarm
Material	Thermoplastic
Mounting Type	TS35 DIN Rail
Humidity	5-95%
Operating Temperature	-40 to 85 deg C
IP Rating	IP20
Standards and Approvals	EN50539-11

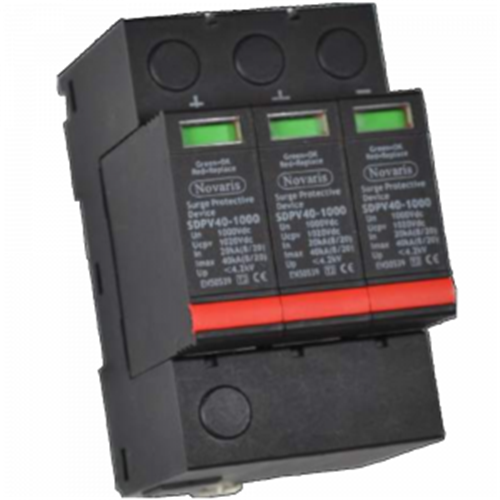

Novaris SDPV-50-1000-M Photovoltaic Surge Diverter 50 kA (L-L) 50 kA (L-PE) 1000VDC 50 kA 2 Ph
