Specifications

Product Type	Photovoltaic Surge Diverter
Brand	NOVARIS
Base Type	90 Mounting
Connection Type	Shunt
Degree of Protection	IP20
Fuse Rating	125 A
Humidity	5-95%
Material	Thermoplastic
Mounting Type	TS35 DIN Rail
Operational Temperature	-40 to 85 deg C
Phase	2
Rated Current	50 kA (L-L), 50 kA (L-PE)
Rated Voltage	1500 VDC
Standards and Approvals	UL1449-4th, IEC61643-31
Terminal Capacity	35 sq-mm Power, 1.5 sq-mm Alarm

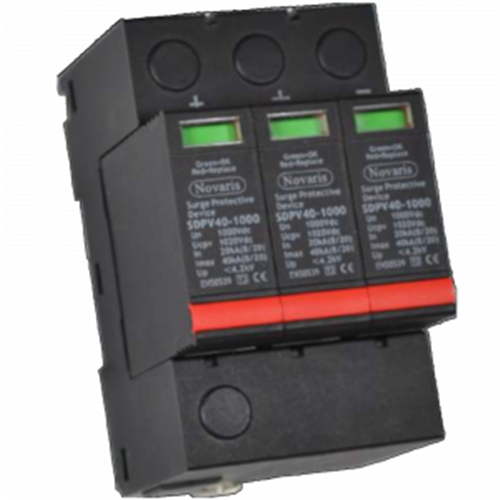

Novaris SDPV-50-1500-M Photovoltaic Surge Diverter 50 kA (L-L) 50 kA (L-PE) 1500VDC 50 kA 2 Ph
