Specifications

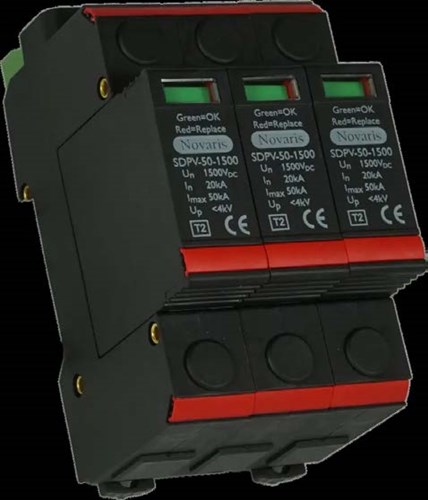

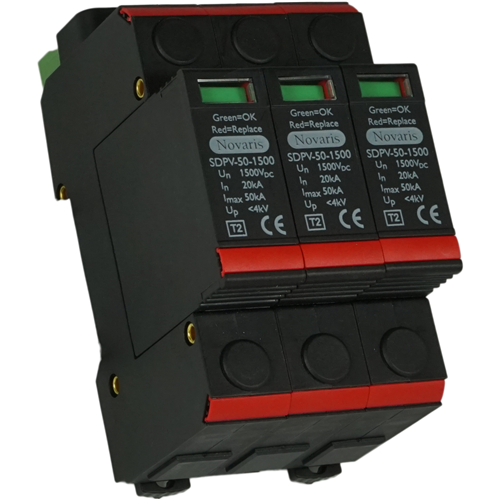

Product Type	SDPV Solar Protector
Brand	Novaris
Series	SDPV
Application	Power, PV Systems
Connection Type	Shunt
No. of Phases	2
Rated Current	50 kA (L-L), 50 kA (L-PE)
Rated Voltage	1500 VDC
Nominal Voltage	1500 V DC
Voltage Protection Level Up	< 4000 V
Max. Discharge Current Imax (8/20µs)	50 kA
Short Circuit Current Rating	50 kA
Nominal Discharge Current Inom (8/20µs)	20 kA
Connecting Capacity	35 sq-mm Power, 1.5 sq-mm Alarm
Material	Thermoplastic
Mounting Method	TS35 DIN Rail
Mounting Type	TS35 DIN Rail
Terminal Size	35 mm2
Width	54 mm
Humidity	5-95%
Operating Temperature	-40 to 70 degC
IP Rating	IP20
Standards and Approvals	UL1449-4th, IEC61643-31
