Specifications

Product Type	PHLS (Remote IO)
Brand	Panasonic
Series	FP7
Connection Type	Screw-type terminal block
Channel Isolation	Photocoupler
Digital Inputs	8
Output Ratings	20.4 to 28.8 V DC
Input Ratings	24 VDC
Input Type	Voltage
Output Type	Sink type (Open collector output)
Rated Current	3 mA
Rated Voltage	24 VDC
Supply Voltage	20.4V – 28.8V
Terminal Type	Screw Terminals
Response Time	147 ms
Mounting Method	DIN Rail
Shape	Standard Type
Depth	50 mm
Height	50 mm
Weight	140 g
Width	85 mm
Humidity	10-95%
Storage Temperature	-40 to +70 ?
Operating Temperature	0 to +55 ?
Hazardous Location Ratings	PD 2
Compliance Standards	CE, UL, KC

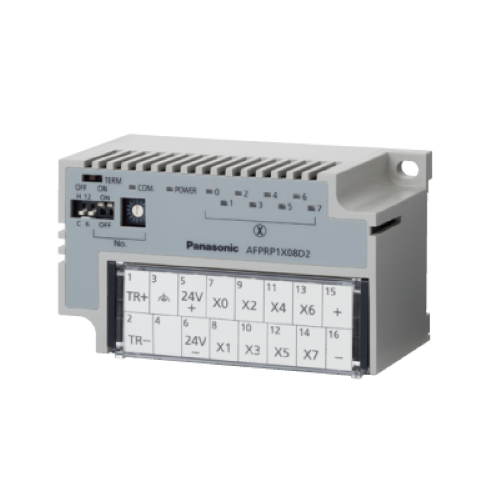

Panasonic AFPRP1X08D2 Remote I/O Unit 24VDC
