Specifications

Product Type	Control Unit
Brand	Panasonic
Series	FPX
Development Software	Control FPWIN Pro7/FPWIN GR7
Connection Type	RJ-45 Screw Clamp Terminal, USB Port
Analog Resolution	14 bit
Channel Isolation	Photocoupler
No. of Analog Inputs	32
No. of Analog Outputs	28
No. of Digital Inputs	32
No. of Digital Outputs	28
Output Ratings	0.5 A
Input Ratings	24 V DC
Input Type	NPN
Output Type	Transistor Output (NPN)
Power Consumption	<=47 W
Rated Voltage	100-240 VAC
Supply Voltage	100 - 240 V AC
Terminal Type	Screw Terminal
Memory Capacity	32 kb
Mounting Method	DIN Rail
Mounting Type	DIN Rail
Depth	82 mm
Height	90 mm
Width	220 mm
Storage Temperature	-40? - +70?
Operating Temperature	0? - +55?
Expandable Communications	Yes
Fieldbus Interface	1
Serial Ports	1
USB Port	1
Communication	(1) USB, (1) RS-232C
Supported Serial Protocols	PLC link MEWTOCOL-COM (master / slave) MODBUS RTU (master / slave) General-purpose communication Modem initialization
Hazardous Location Ratings	Level of Contamination 2
Compliance Standards	EMC directive: EN 61131-2 (directive concerning emission, immunity and low voltage)

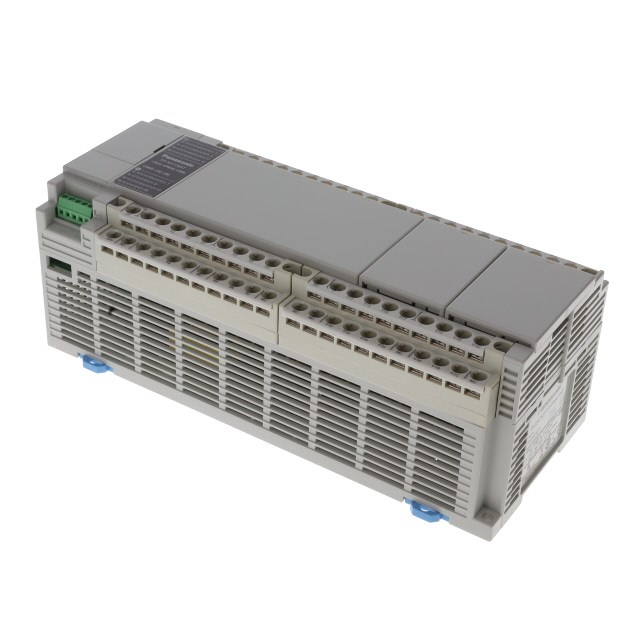

Panasonic AFPXHC60T Programmable Controller 100-240VAC 30 Analogue Outputs 32 Digital Inputs 28 Digital Outputs
