Specifications

Product Type	Compact Photoelectric Sensor
Brand	PANASONIC
Series	Cx-400
Cable Length	2 m
Cable Type	2-core cabtyre cable
Degree of Protection	IP67
Emitting Element	Infrared
Housing Material	PBT
Humidity	35-85%
Illuminance	<3000 lx
Insulation Resistance	2 MOhm
Mounting Type	Bracket
Operation Indicator	Orange LED ON
Operational Temperature	-30 to 70 deg C
Rated Current	20 mA Emitter, 10 mA Receive
Rated Voltage	12-24 VDC
Relative Humidity	35 to 85%
Response Time	<1 ms
Sensing Range	15 m
Sensor Type	Thru-beam Long sensing range
Shock Resistance	500 ms
Standards and Approvals	CE, EMC Directive
Weight	100 g

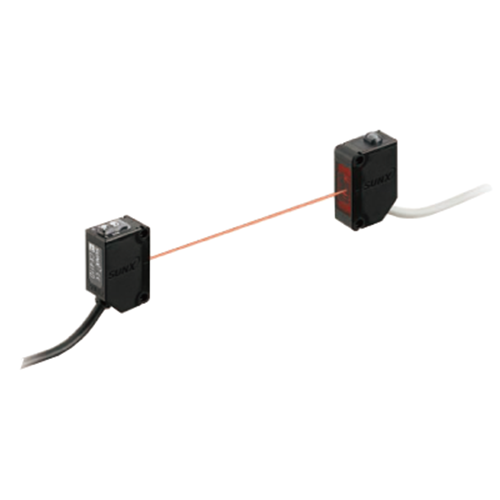

Panasonic CX-412-Z Compact Photoelectric Sensor 12-24VDC 15m Sensing 2m L Cable
