Specifications

Product Type	Compact Photoelectric Sensor
Brand	PANASONIC
Series	Cx-400
Cable Length	2 m
Cable Type	2-core cabtyre cable
Degree of Protection	IP67
Emitting Element	Red LED
Housing Material	PBT
Humidity	35-85%
Illuminance	<3000 lx
Insulation Resistance	2 MOhm
Mounting Type	Bracket
Operation Indicator	Orange LED ON
Operational Temperature	-30 to 70 deg C
Rated Current	<15 mA
Rated Voltage	12-24 VDC
Relative Humidity	35 to 85%
Response Time	<1 ms
Sensing Range	70-300 mm
Sensor Type	Diffuse Reflective Narrow View
Shock Resistance	500 ms
Standards and Approvals	CE, EMC Directive
Weight	60 g

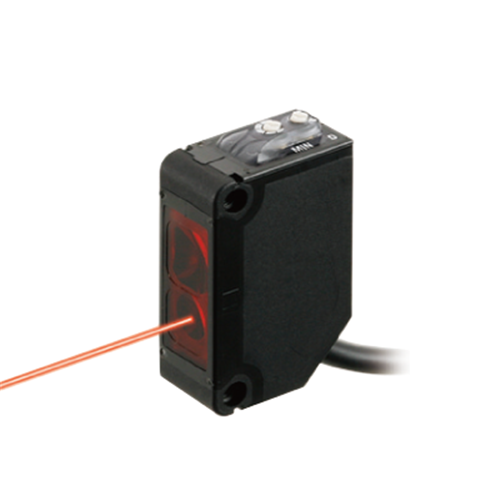

Panasonic CX-423-P-Z Compact Photoelectric Sensor 12-24VDC 70-300mm Sensing 2m L Cable
