Specifications

Product Type	Photoelectric Sensor
Brand	Panasonic
Series	CX - 400
Cable Length	2 m
Max. Switching Distance	2 mm to 50 mm
Sensing Type	Adjustable Range Reflective type
Type of Switching Output	PNP
Indication	Orange LED ON
Electrical Connection	M12 pigtail
Illumination	<3000 lx
Light Source	Red LED
Rated Current	<20 mA
Rated Voltage	12 V to 24 V DC ±10 % Ripple P-P 10 % or less
Sensor Type	Adjustable range reflective Small spot
Response Time	<1 ms
Cable Type	4-core cabtyre cable
Housing Material	PBT
Material	Enclosure: PBT, Front cover: Polycarbonate, Display cover: Polycarbonate
Mounting Type	Bracket
Depth	20 mm
Height	31 mm
Weight	65 g
Width	11.2 mm
Relative Humidity (Without condensation)	35 to 85%
Humidity	35-85%
Operating Temperature	-25 ºC to +55 ºC
IP Rating	IP67 (IEC)
Standards and Approvals	CE, EMC Directive

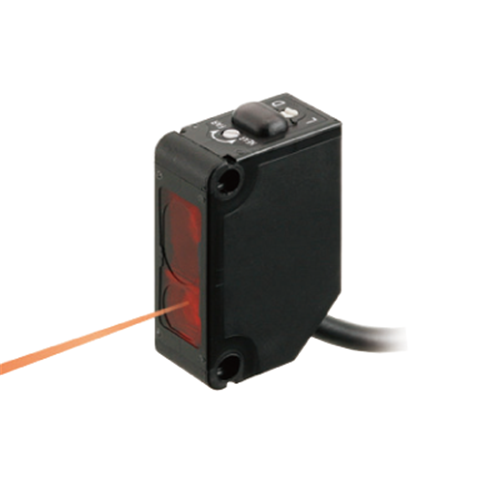

Panasonic CX-441-P-Z Compact Photoelectric Sensor 12-24VDC 2-50mm Sensing 2m L Cable
