Specifications

Product Type	Photoelectric Sensor
Brand	Panasonic
Series	CX - 400
Cable Length	2 m
Max. Switching Distance	2 mm to 50 mm (When distance is set to 50 mm) 15 mm to 100 mm (When distance is set to 100 mm)
Sensing Type	Adjustable Range Reflective type
Type of Switching Output	NPN
Indication	Orange LED ON
Electrical Connection	M8 connector
Illumination	<3000 lx
Light Source	Red LED
Rated Current	<20 mA
Rated Voltage	12 V to 24 V DC ±10 % Ripple P-P 10 % or less
Sensor Type	Adjustable range reflective
Response Time	<1 ms
Cable Type	4-core cabtyre cable
Housing Material	PBT
Material	Enclosure: PBT, Front cover: Polycarbonate, Display cover: Polycarbonate
Mounting Type	Bracket
Depth	20 mm
Height	31 mm
Weight	65 g
Width	11.2 mm
Relative Humidity (Without condensation)	35 to 85%
Humidity	35-85%
Operating Temperature	-25 ºC to +55 ºC
IP Rating	IP67 (IEC)
Standards and Approvals	CE, EMC Directive

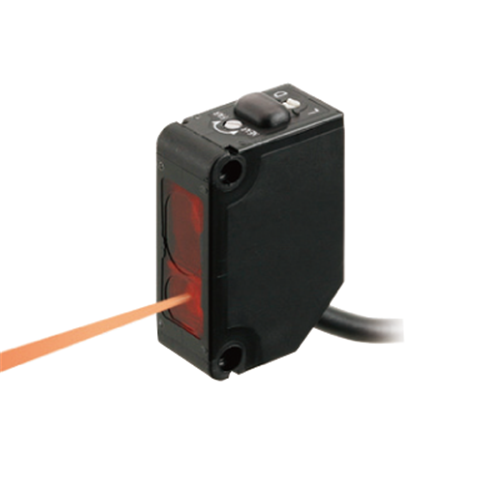

Panasonic CX-444-Z Compact Photoelectric Sensor 12-24VDC 15-100mm Sensing 2m L Cable
