Specifications

Product Type	Photoelectric Sensor
Brand	Panasonic
Series	CX - 400
Cable Length	2 m
Max. Switching Distance	50 mm to 500 mm
Sensing Type	Retroreflective
Type of Switching Output	NPN
Indication	Orange LED ON
Electrical Connection	Cable
Illumination	<3000 lx
Light Source	Infrared LED
Rated Current	<10 mA
Rated Voltage	12 V to 24 V DC ±10 % Ripple P-P 10 % or less
Sensor Type	Retroreflective for transparent object sensing
Response Time	<1 ms
Cable Type	2-core cabtyre cable
Housing Material	PBT
Material	Enclosure: PBT, Lens: Polycarbonate, Indicator cover: Polycarbonate
Mounting Type	Bracket
Depth	20 mm
Height	31 mm
Weight	80 g
Width	11.2 mm
Relative Humidity (Without condensation)	35 to 85%
Humidity	35-85%
Operating Temperature	-25 ºC to +55 ºC
IP Rating	IP67 (IEC)
Standards and Approvals	CE, EMC Directive

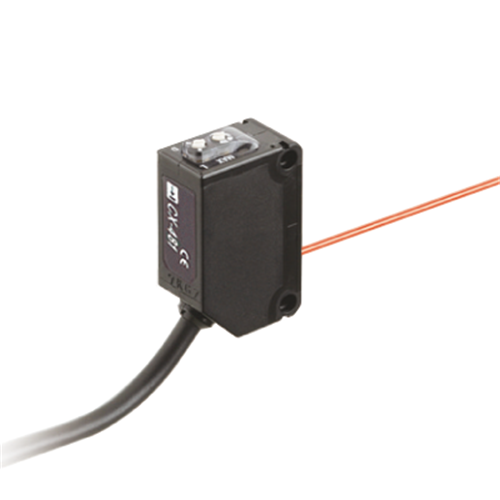

Panasonic CX-481 Compact Photoelectric Sensor 12-24VDC 50-500mm Sensing 2m L Cable
