Specifications

Product Type	Photoelectric Sensor
Brand	Panasonic
Series	EQ - 500
Cable Length	100 m
Connection Type	Screw
Max. Switching Distance	0.1 to 1.0 m
Sensing Type	Reflective
Type of Switching Output	Relay
Indication	Orange LED ON
Electrical Connection	Screw Terminal
Illumination	3000 lx
Light Source	Infrared LED (modulated)
Output Type	1 A Relay
Rated Voltage	24-240 V AC ±10 % or 12 to 240 V DC ±10 % Ripple P-P 10 % or less
Sensor Type	Multi-Voltage
Response Time	<20 ms
Housing Material	ABS
Material	Enclosure: ABS, Front cover: Polycarbonate, Display cover: Polycarbonate
Depth	26 mm
Height	68 mm
Weight	100 g
Width	68 mm
Relative Humidity (Without condensation)	35 to 85%
Humidity	35-85%
Operating Temperature	–25 to +55 °C
IP Rating	IP67 (IEC)

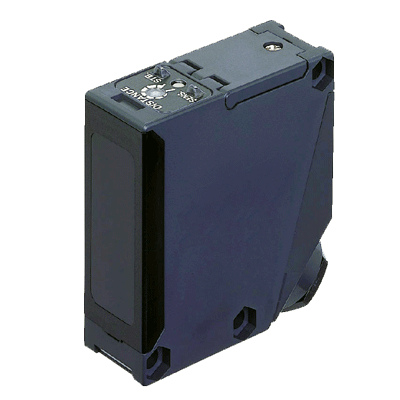

Panasonic EQ-502 Adjustable Range Reflective Photoelectric Sensor 12-240VDC 0.1-1mm Sensing 100m L Cable
