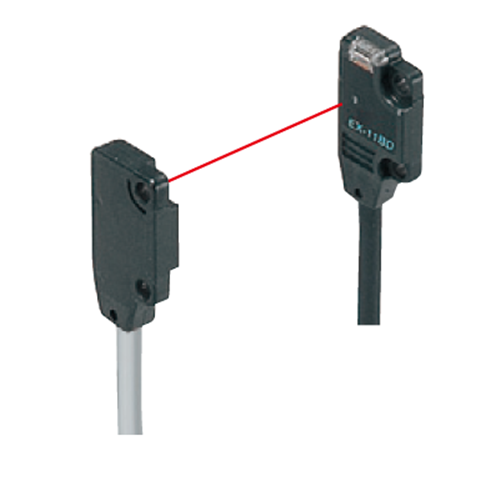

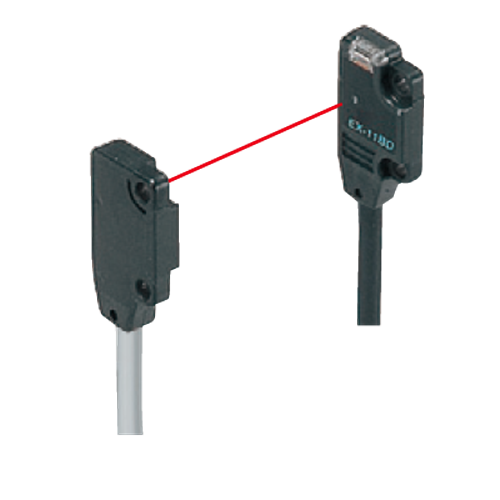

Panasonic EX-13EA-PN Ultra-slim Photoelectric Sensor 12-24VDC 500mm Sensing 2m L Cable PNP-Output

Product Code: EX-13EA-PN

  • Detects objects up to 500 mm away
  • Operates on 12-24 VDC with PNP output
  • Durable polyarylate housing, IP67 rated
  • Fast response time of <0.5 ms
  • Orange LED indicates operation status
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Ultra-slim Photoelectric Sensor
Brand PANASONIC
Cable Length 2 m
Cable Type 2 core cabtyre
Degree of Protection IP67
Housing Material Polyarylate
Humidity 35-85%
Illuminance 3000 lx
Insulation Resistance 20 MOhm
Operation Indicator Orange LED ON
Operational Temperature -30 to 70 deg C
Output Type PNP
Rated Current <10 mA
Rated Voltage 12-24 VDC
Relative Humidity 35 to 85%
Response Time <0.5 ms
Sensing Range 500 mm
Sensor Type Standard Thru-Beam Side Sensing
Shock Resistance 500 ms
Utilisation Category DC-12 or DC-13
Weight 50 g

Description

<p>When it comes to reliable and efficient sensing solutions, this Photoelectric Sensor stands out as a practical choice for industry professionals across Australia. Designed with precision in mind, this sensor ensures optimal performance in various industrial and commercial applications.</p><p>With a sensing range of 500 mm, it is well-suited for detecting objects within close proximity, making it ideal for automation processes that require accuracy and consistency. Operating on a rated voltage of 12-24 VDC and drawing less than 10 mA of current, this sensor is energy-efficient while maintaining robust output through its PNP configuration.</p><p>Constructed from durable polyarylate material, the housing offers excellent resistance to environmental factors. This toughness is further enhanced by its IP67 degree of protection, ensuring complete dust-tightness and water resistance up to one meter immersion—perfect for use in harsh or unpredictable conditions. The operational temperature range from -30 to 70 degrees Celsius means that it can perform reliably whether you&amp;#39;re dealing with freezing cold or scorching heat.</p><p>Weighing just 50 grams, the sensor is lightweight yet built to withstand demanding environments. Its shock resistance capacity allows it to endure impacts up to 500 milliseconds without compromising functionality—a critical feature when installed in high-vibration settings.</p><p>The product also features an insulation resistance of 20 MOhm, contributing significantly to its electrical safety standards by preventing unwanted currents that could lead to malfunctions or hazards. Additionally, with an illuminance threshold of 3000 lux, the sensor operates effectively even in brightly lit environments without false triggering.</p><p>An orange LED operation indicator provides clear visual feedback when the sensor is active—a simple yet effective way to monitor device status at a glance. The response time clocks in at under 0.5 milliseconds which ensures rapid detection and processing—essential for high-speed applications where timing is crucial.</p><p>Equipped with a sturdy cable length of two meters, installation flexibility is assured while maintaining signal integrity over distance. The humidity tolerance between 35% and 85% allows usage across varied climates without degradation due to moisture exposure.</p><p>In summary, this Photoelectric Sensor combines durability with precision engineering tailored for Australian industries looking for dependable performance under diverse conditions—ensuring your operations run smoothly day after day.</p>
