Specifications

Product Type	Photoelectric Sensor
Brand	Panasonic
Series	EX - 10
Cable Length	2 m
Max. Switching Distance	150 mm
Sensing Type	Thru-beam
Type of Switching Output	NPN
Utilization Category	DC-12 or DC-13
Indication	Orange LED ON
Electrical Connection	Cable
Illumination	3000 lx
Light Source	Red LED
Output Type	NPN
Rated Current	<25 mA
Rated Voltage	12 to 24 V DC ±10 % Ripple P-P 10 % or less
Sensor Type	Stardard Thru-Beam Front Sensing with operation mode switch on the bifurcation
Response Time	<0.5 ms
Cable Type	3 core cabtyre
Housing Material	Polyarylate
Material	Enclosure: Polyarylate, Lens: Polyarylate, Bifurcation: Polyarylate
Depth	3.5 mm
Height	19 mm
Weight	80 g
Width	10 mm
Relative Humidity (Without condensation)	35 to 85%
Humidity	35-85%
Operating Temperature	–25 to +55 °C
IP Rating	IP67 (IEC)

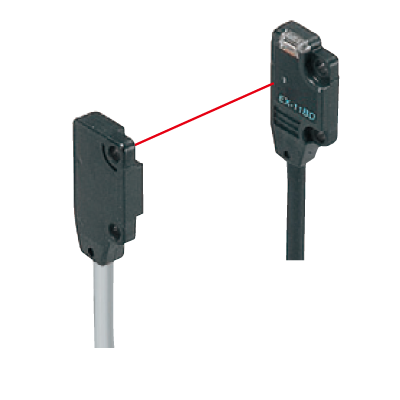

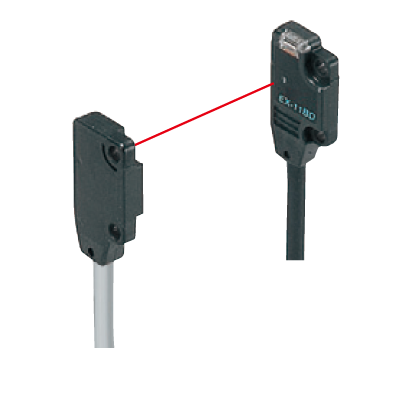

Panasonic EX-15 Ultra-Slim Photoelectric Sensor 12-24VDC 150mm Sensing 2m L Cable NPN-Output
