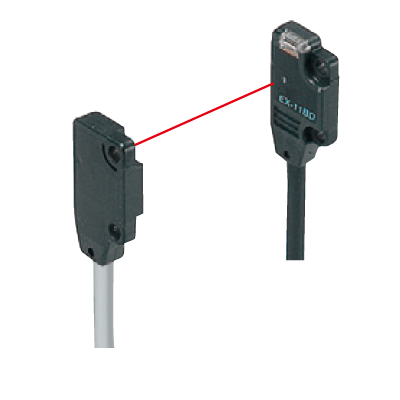

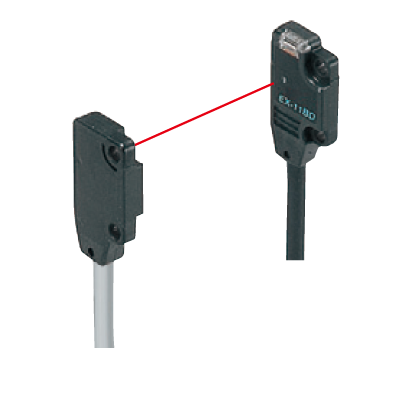

Panasonic EX-19A-PN Ultra-slim Photoelectric Sensor 12-24VDC 1m Sensing 2m L Cable PNP-Output

Product Code: EX-19A-PN

  • Sensing range up to 1 m
  • Operates on 12-24 VDC with <10 mA current
  • Durable IP67 polyarylate housing
  • Fast response time of <0.5 ms
  • Orange LED operation indicator
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Ultra-slim Photoelectric Sensor
Brand PANASONIC
Cable Length 2 m
Cable Type 2 core cabtyre
Degree of Protection IP67
Housing Material Polyarylate
Humidity 35-85%
Illuminance 3000 lx
Insulation Resistance 20 MOhm
Operation Indicator Orange LED ON
Operational Temperature -30 to 70 deg C
Output Type PNP
Rated Current <10 mA
Rated Voltage 12-24 VDC
Relative Humidity 35 to 85%
Response Time <0.5 ms
Sensing Range 1 m
Sensor Type Standard Thru-Beam Front Sensing
Shock Resistance 500 ms
Utilisation Category DC-12 or DC-13
Weight 50 g

Description

<p>When it comes to reliable and efficient sensing solutions in industrial and commercial environments, this Photoelectric Sensor stands out as a robust choice. Designed for precision and durability, it offers a sensing range of 1 meter, making it suitable for various applications where detecting objects at short distances is essential.</p><p>Operating on a rated voltage between 12-24 VDC and consuming less than 10 mA of current, this sensor ensures energy efficiency without compromising performance. Its PNP output type facilitates seamless integration with numerous control systems, providing flexibility in deployment.</p><p>Constructed with polyarylate housing, the sensor boasts excellent resistance to impact and environmental factors. It adheres to an IP67 degree of protection standard, ensuring it&amp;#39;s well-suited for harsh conditions by being dust-tight and capable of withstanding water immersion up to 1 meter deep. This makes it ideal for both indoor and outdoor use across different industries.</p><p>The operational temperature range from -30 to 70 degrees Celsius highlights its adaptability to extreme weather conditions without affecting functionality. Additionally, the humidity tolerance from 35% to 85% ensures stable operation even in varying atmospheric moisture levels.</p><p>Weighing just 50 grams, this lightweight sensor doesn&amp;#39;t add unnecessary load while maintaining high shock resistance at 500 ms. The insulation resistance is rated at an impressive 20 MOhm, enhancing safety by minimizing leakage currents that could potentially affect sensitive equipment or systems.</p><p>For installation convenience, the sensor comes equipped with a cable length of 2 meters allowing ample reach in diverse setups. With a response time of less than 0.5 milliseconds (ms), it&amp;#39;s designed for rapid detection tasks where speed is crucial.</p><p>The illuminance level supported is up to 3000 lux which means it can operate effectively under bright lighting conditions found in factories or warehouses without interference from ambient light sources. An orange LED operation indicator provides clear visual confirmation when the sensor is active ensuring easy status monitoring during operations.</p><p>This combination of features makes our Photoelectric Sensor not only reliable but also versatile enough to meet various technical requirements efficiently within your projects or installations.</p>
