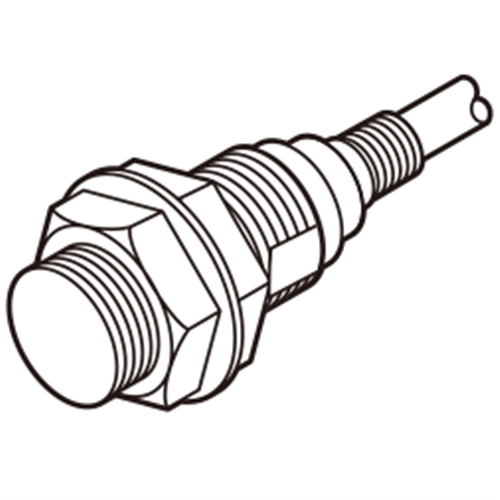

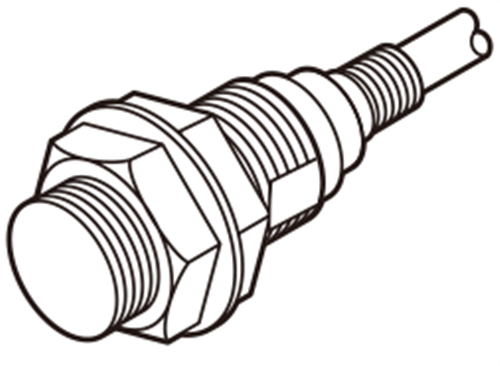

Panasonic GX-318MLK-A-N Cylindrical Inductive Proximity Sensor NO NPN-Output 2m L Cable

Product Code: GX-318MLK-A-N

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Cylindrical Inductive Proximity Sensor
Brand PANASONIC
Cable Length 2 m
Cable Type Standard
Degree of Protection IP67, IP69K, IP67G
Housing Material Nickel Plated Brass
Humidity 35-95%
Insulation Resistance 50 MOhm
Operational Temperature -40 to 85 deg C
Rated Current <16 mA
Rated Voltage 10-30 VDC
Relative Humidity 35 to 95%
Sensing Range 0-6.4 mm
Sensor Type Non-shielded
Shape Threaded type
Shock Resistance 1000 ms
Thread Size M18

CAD Blocks & Dimensions
