Specifications

Product Type	Distance Sensor
Brand	Panasonic
Series	HG - C
Cable Length	10 m
Current Input	4-20 mA
Input Voltage	0-5 V
Measurement Center Distance	400 mm
Measurement Range	±200 mm
Sensing Type	+/-200 mm
Type of Switching Output	PNP
Light Source	Red semiconductor laser Class 8
Output Type	PNP Analog
Rated Voltage	12-24 VDC
Supply Voltage	12 to 24V DCplus or minus 10% Ripple P-P 10%
Housing Material	Die Cast Aluminium Enclosure, Acrylic Front Cover
Material	Enclosure: Aluminum die-cast, Front cover: Acrylic
Shock Resistance acc. To IEC/EN 60068-2-27	500 m/sq-s
Vibration Resistance acc. To IEC/EN 60068-2-6	10-55 Hz
Depth	20 mm
Height	44 mm
Width	25 mm
Humidity	35-85%
IP Rating	IP67 (IEC)
Ambient Temperature	-10 to +45 ?

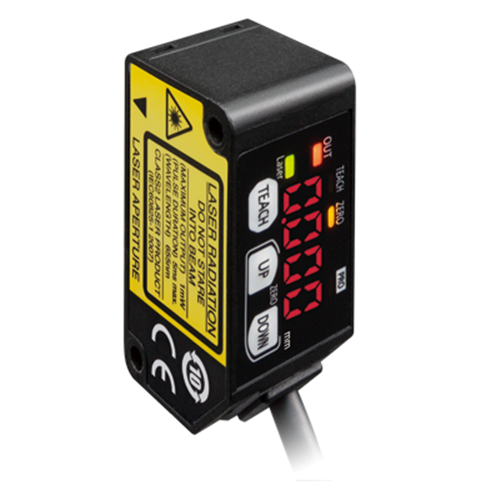

Panasonic HG-C1400-P Self Monitoring Distance Sensor +/-200mm Sensing 12-24VDC PNP Analog Output 2m L Cable
