Specifications

Product Type	Displacement Sensor
Brand	Panasonic
Series	HL - G
Cable Length	5 m
Current Input	3.2-20.8 mA
Input Voltage	0-10.5 V
Sensing Type	Diffuse reflection
Electrical Connection	Cable
Light Source	Red semiconductor laser, Class 2
Output Type	NPN Open Collector Transistor, PNP Open Collector Transistor
Rated Current	<100 mA
Rated Voltage	24 V DC ±10 % including ripple 0.5 V (P-P)
Housing Material	PBT Enclosure, Acrylic Front Cover, PVC Cable
Material	Enclosure: PBT, Front cover: Acrylic, Cable: PVC
Depth	20.4 mm
Height	60 mm
Width	57 mm
Diameter	0.1 mm x 0.1 mm
Humidity	35-85%
IP Rating	IP67 (IEC)
Ambient Temperature	–10 to +45 °C

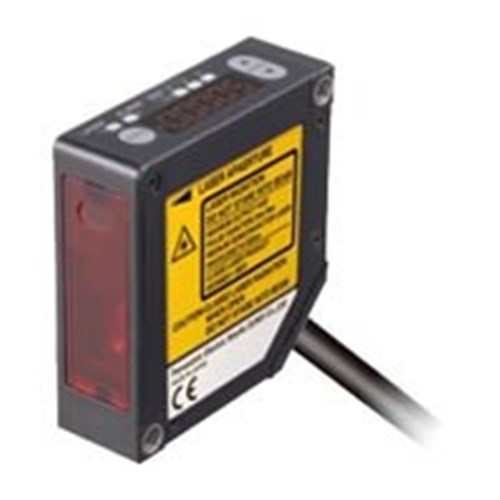

Panasonic HL-G103-A-C5 Standard Diffuse Reflection Sensor 24VDC <100mA 4mm Sensing
