Specifications

Product Type	Sensor
Brand	Panasonic
Series	LS - 400
Cable Length	2 m
Sensing Type	Laser
Type of Switching Output	NPN open-collector transistor - Maximum sink current: 100 mA (Note) - Applied voltage: 30 V DC or less (between output and 0 V) - Residual voltage: 1.5 V or less [at 100 mA (Note) sink current] (Note) 50 mA if 5 to 8 connector type amplifiers are connected in cascade , and 25 mA if 9 to 16 connector type amplifiers are connected in cascade.
Indication	Light-ON, Dark-ON
Electrical Connection	Cable
Output Type	NPN Transistor
Rated Voltage	12-24VDC
Housing Material	ABS Enclosure, Polycarbonate Transparent Cover, Acrylic Push Button Switch
Material	Enclosure: Heat-resistant ABS Transparent cover: Polycarbonate Push button switch: Acrylic Jog switch: ABS
Shock Resistance acc. To IEC/EN 60068-2-27	98 m/sq-s
Operating Temperature without Derating	-10 to +55 ?
Humidity	35-85%
Operating Temperature	-10 to +55 ?

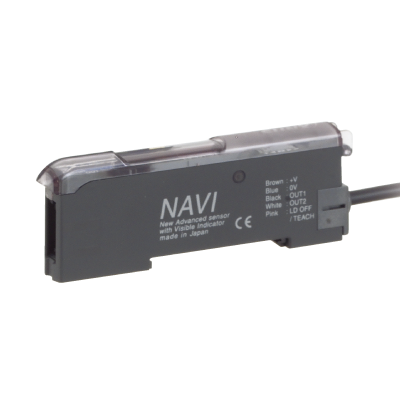

Panasonic LS-401-C2 Digital Laser Sensor 12-24VDC 2m L Cable
