Specifications

Product Type	Sensor
Brand	Panasonic
Series	LX - 100
Max. Switching Distance	10mm
Sensing Type	Mark sensing
Type of Switching Output	NPN open-collector transistor - Maximum sink current: 100 mA - Applied voltage: 30 V DC or less (between output and 0 V) - Residual voltage: 1.5 V or less (at 100 mA sink current)
Electrical Connection	plug-in connector
Illumination	3000 lx
Output Type	NPN Transistor
Rated Voltage	12-24VDC
Housing Material	PB Enclosure, Polycarbonate Display Cover, Silicone Rubber Operation Buttons
Material	Enclosure: PBT Display cover: Polycarbonate Operation buttons: Silicone rubber Lens: Glass Lens holder: Aluminum
Shock Resistance acc. To IEC/EN 60068-2-27	500 m/sq-s
Humidity	10-95%
Operating Temperature	-10 to +55 ?
IP Rating	IP67 (IEC)

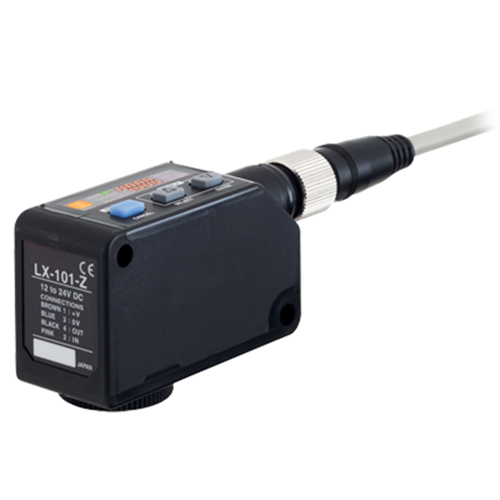

Panasonic LX-101-Z Digital Mark Sensor 12-24VDC 10mm Sensing
