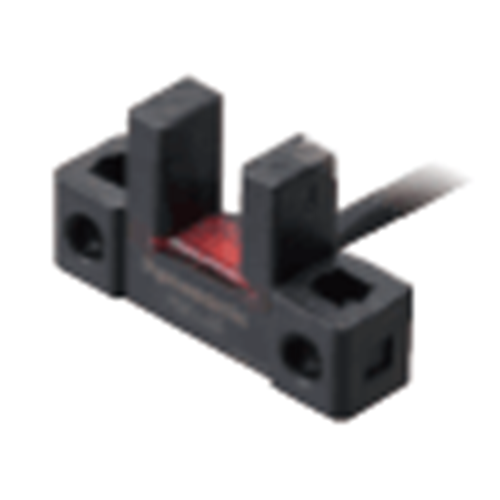

Panasonic PM-L45 Amplifier Built-In/U-Shaped Micro Photoelectric Sensor 5-24VDC 6mm Sensing 1m L Cable

Product Code: PM-L45

  • Compact optical sensor with 6 mm sensing range
  • Operates on 5-24 VDC with NPN output
  • Durable PBT housing, polycarbonate display
  • Wide temp range: -25 to 55°C
  • CE, RoHS, UL/cUL approved
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Amplifier Built-In/U-Shaped Micro Photoelectric Sensor
Brand PANASONIC
Cable Length 1 m
Degree of Pollution IP3
Housing Material PBT Enclosure, Polycarbonate Display Section
Humidity 5-85%
Illuminance 1000 lx
Operation Indicator Light-ON, Dark-ON
Operational Temperature -25 to 55 deg C
Output Type NPN Transistor
Rated Voltage 5-24 VDC
Sensing Range 6 mm
Shock Resistance 15000 m/sq-s
Standards and Approvals CE, RoHS, UL/cUL Recognition

Description

<p>When selecting an optical sensor for industrial or commercial applications, the focus is on reliability and precision. This optical sensor offers a sensing range of 6 mm, which makes it suitable for tasks requiring close-range detection. Operating efficiently within a voltage range of 5-24 VDC, it provides flexibility in terms of integration into various systems.</p><p>The output type is an NPN transistor, a common choice that ensures compatibility with numerous control systems. The housing material combines PBT for the enclosure and polycarbonate for the display section, providing durability and resistance to environmental factors.</p><p>Operating conditions are broad; withstanding temperatures from -25 to 55 degrees Celsius allows this sensor to function in diverse environments while maintaining performance integrity. It operates effectively in humidity levels ranging from 5% to 85%, ensuring consistent operation even in varying atmospheric conditions.</p><p>Rated at IP3 degree of pollution protection, this sensor can handle moderate exposure to dust without compromising its functionality. Its shock resistance is impressive at 15000 m/s&amp;#178;, making it resilient against mechanical impacts typically encountered in industrial settings.</p><p>The cable length provided is 1 meter, offering ample reach for most installations without excessive slack that could complicate setup or maintenance. With an illuminance capability of up to 1000 lux, this sensor can perform well under different lighting conditions.</p><p>For ease of use and adaptability in various applications, the operation indicator supports both Light-ON and Dark-ON modes. This feature allows users to tailor the sensor&amp;#39;s response based on specific operational requirements or preferences.</p><p>Standards and approvals include CE marking and RoHS compliance, indicating adherence to European safety standards and restrictions on hazardous substances. Additionally, UL/cUL recognition certifies its suitability for use across North American markets.</p><p>This combination of features makes it an excellent choice for those seeking reliable performance coupled with robust construction standards required by industry professionals globally.</p>

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
