Specifications

Product Type	Sensor
Brand	Panasonic
Series	PM2
Cable Length	2 m
Max. Switching Distance	2.5-8mm
Sensing Type	Photoelectric
Type of Switching Output	NPN-Output
Indication	Dark-ON
Electrical Connection	Cable
Illumination	3500 lx
Light Source	Infrared LED (Peak emission wavelength: 880 nm 0.035 mil, modulated)
Output Type	NPN Transistor
Rated Current	25 mA
Rated Voltage	5 to 24 V DC plus or minus 10 % Ripple P-P 5 % or less
Response Time	<0.8 ms
Housing Material	Polycarbonate Enclosure
Material	Enclosure: Polycarbonate, Terminal part: HSM (Ag plated)
Shock Resistance acc. To IEC/EN 60068-2-27	500 m/sq-s
Pollution Degree	3
Humidity	45-85%
Operating Temperature	–10 to +55 ?
Standards and Approvals	CE, RoHS, UL/cUL Recognition

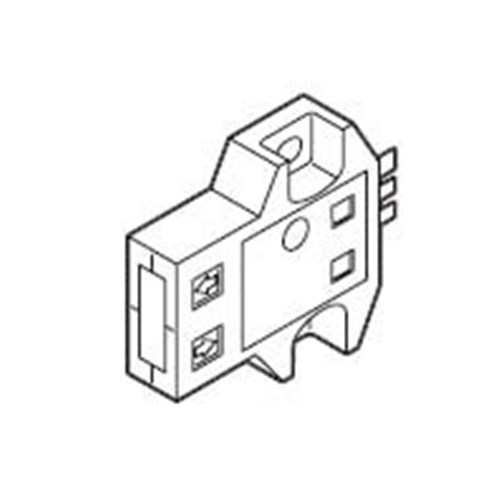

Panasonic PM2-LH10B Convergent Reflective Micro Photoelectric Sensor 5-24VDC 2.5-8mm Sensing 2m L Cable NPN-Output
