Specifications

Product Type	Side/Wall Mount Cooling Unit
Brand	PFANNENBERG
Series	DTS
Ambient Temperature	15 to 55 deg C
Colour	Light Grey RAL 7035
Cooling Capacity	1000 W
Cover Material	Electrostatically Powder Coated
Degree of Protection	IP54
Depth	200 mm
Height	1350 mm
Housing Material	Galvanised sheet steel
Material	Galvanized Sheet Steel
Mounting Type	Door/Side
Noise Level	<=65 dBA
Operational Temperature	15 to 55 deg C
Power Consumption	513 W
Rated Current	3.1 A,2.25 A
Rated Frequency	50/60 Hz
Rated Operational Voltage	207-253 VAC
Rated Voltage	230 VAC
Terminal Type	Spring
Unimpeded Airflow - External	1000 cu-m/h
Unimpeded Airflow - Internal	570 cu-m/h
Width	400 mm

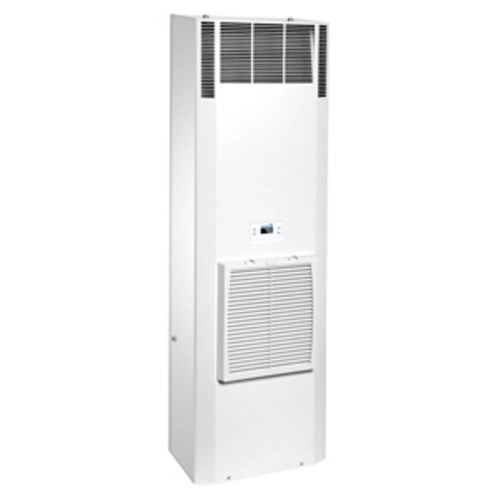

PFANNENBERG COOLING UNIT 230V CM 1kW RAL7035 IP54 DTS 8241E
