Specifications

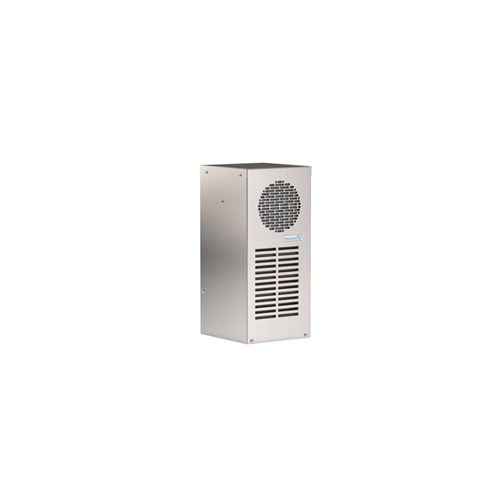

Product Type	Cooling Unit
Brand	PFANNENBERG
Series	DTS
Power Consumption	253 W
Rated Current	1.2 A
Rated Frequency	50 Hz / 60 Hz
Rated Voltage	230 V
Cooling Capacity	306/322 W
Colour	RAL 7035 (Light Grey)
Cover Material	Galvanised / electrostatically powder-coated steel
Material	Galvanised sheet steel housing, powder-coated cover
Mounting	Wall/Side Mount
Unimpeded Airflow-Internal	64 m³/h
Depth	191.4 mm
Height	393.7 mm
Weight	14 kg
Width	177.8 mm
Noise	< 64 dB(A)
Operating Temperature	+8 to +45 °C
IP Rating	NEMA 3R/4
Ambient Temperatures	+8 to +45 °C
Standards and Approvals	NEMA 3R/4
