Specifications

Product Type	Cooling Unit
Brand	PFANNENBERG
Series	DTI
Power Consumption	786/863 W
Rated Current	3.24 / 2.63 A
Rated Frequency	50 Hz / 60 Hz
Rated Voltage	400 V
Cooling Capacity	1500 W
Colour	RAL 7035 (Light Grey)
Cover Material	Electrostatically powder-coated steel
Material	Galvanised sheet steel housing, powder-coated cover
Mounting	DTI – Door/Side, Partially Recessed Mounting
Unimpeded Airflow-Internal	935 m³/h
Depth	158 mm
Height	1536 mm
Weight	55 kg
Width	485 mm
Noise	< 62 dB(A)
Operating Temperature	+15 to +55 °C
IP Rating	IP54 / IP34
Ambient Temperatures	+15 to +55 °C
Standards and Approvals	EN 60529 (IP54/IP34)

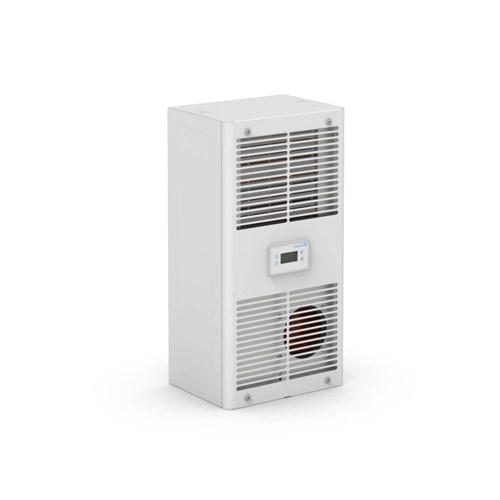

PFANNENBERG COOLING UNIT 400 2~V 1.5kW RAL7035 IP54 DTI 6301
