Specifications

Product Type	Cooling Unit
Brand	PFANNENBERG
Series	DTI
Power Consumption	1048/1247 W
Rated Current	2.49 / 2.18 A
Rated Frequency	50 Hz / 60 Hz
Rated Voltage	400/460 V
Cooling Capacity	2500 W
Colour	RAL 7035 (Light Grey)
Cover Material	Electrostatically powder-coated steel
Material	Galvanised sheet steel housing, electrostatically powder-coated cover
Mounting	DTI – Door/Side, Partially Recessed Mounting
Unimpeded Airflow-Internal	935 m³/h
Depth	158 mm
Height	1536 mm
Weight	67 kg
Width	485 mm
Noise	< 65 dB(A)
Operating Temperature	+15 to +55 °C
IP Rating	IP54 (enclosure) / IP34 (surroundings)
Ambient Temperatures	+15 to +55 °C
Standards and Approvals	EN 60529 (IP54/IP34)

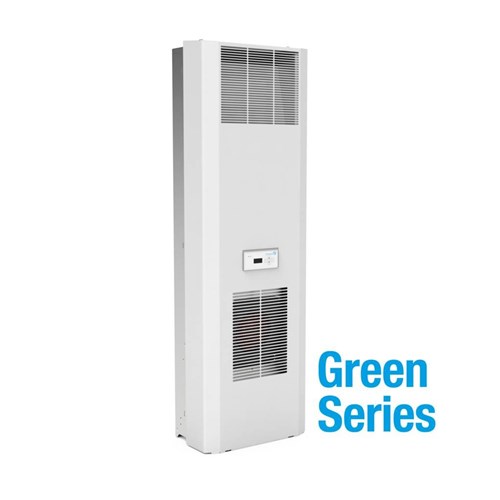

PFANNENBERG COOLING UNIT 400V 2.5kW RAL7035 IP54 DTI 6501
