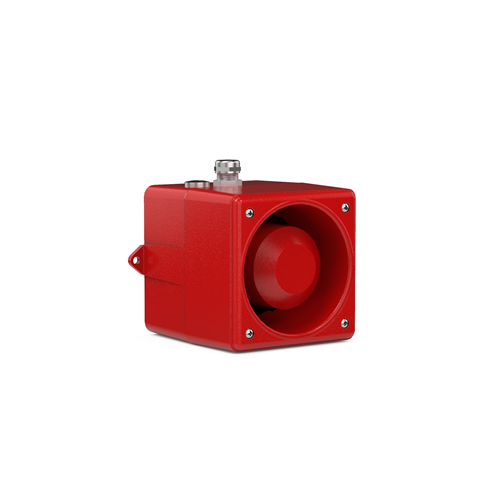

Pfannenberg 23111100001 Sounder 114 dB(A) 230 V 0.06 A IP67

Product Code: 23111100001

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Sounder
Brand Pfannenberg
Series DS 10
Rated Current 0.06 A
Rated Voltage 230 V
Terminal Type Screw Terminals
Functionality Multifunctional Sounds
Housing Colour Red
Housing Material Die-Cast Aluminium GD-AI Si12 Cu
Loudness 114 dB(A)
Sound Frequency 2400 Hz
Depth 143 mm
Height 133 mm
Mounting Hole Diameter (mm) 22.3 mm
Weight 2.15 kg
Width 170 mm
IP Rating IP67
Ambient Temperatures -40°C - +55°C

Documents

IPD Product Catalogue V17
Manual
PFANNENBERG Datasheet

Certificate

EU Declaration of Conformity
