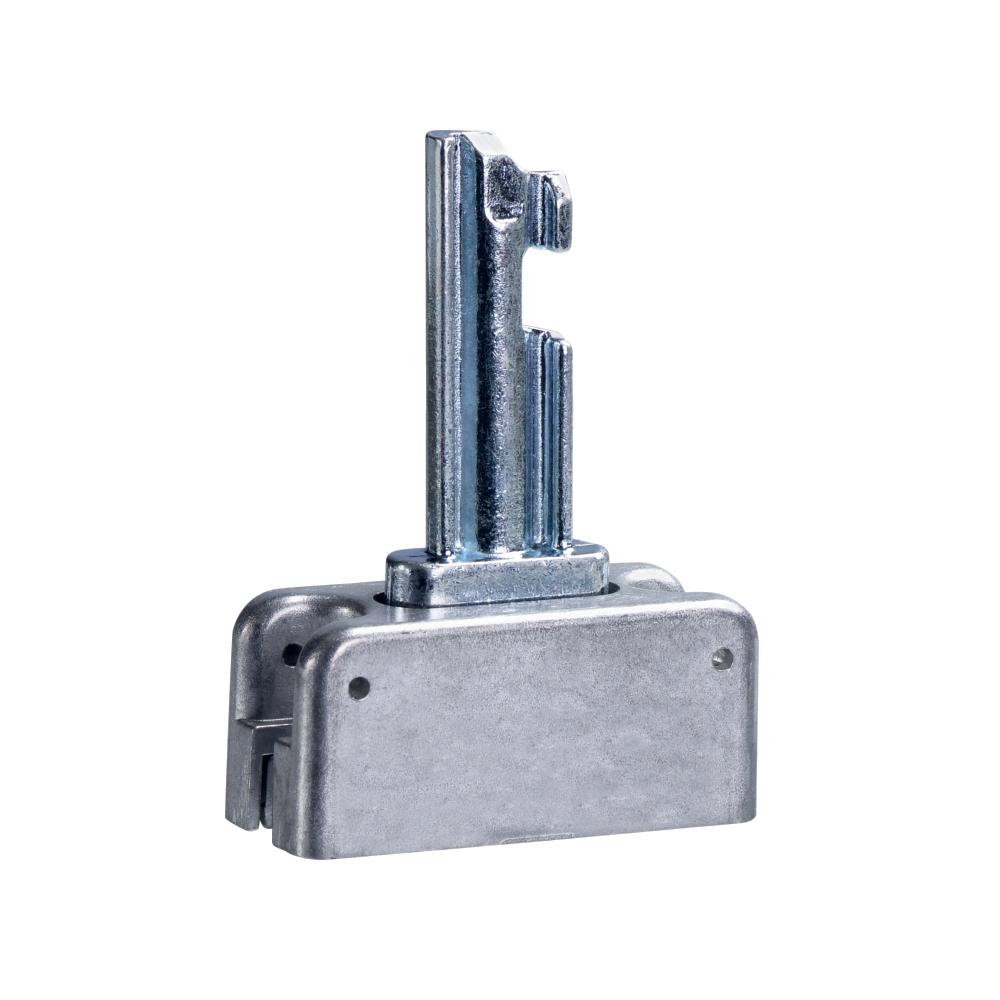

SCHMERSAL AZ/AZM 415-B2 SOLENOID INTERLOCK 101144796

Product Code: 101144796

Enhance your machine safety with the Schmersal AZM415 series solenoid interlocks, featuring a versatile stainless steel flexible actuator. Designed for straight or flexible operation, this robust component ensures secure interlocking with an actuating radius of 250 mm. Trust in Schmersal's commitment to reliable safety solutions for industrial applications.

Technical Specifications

Actuator Type Roller lever H65
Enclosure Material Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Gross Weight (g) 50
Net Weight (g) 360
Wire Cross-Section 0.14 mm
Enclosure Coating Material Painted
Minimum Ambient Temperature (°C) -25
Brand SCHMERSAL
Series AZM415
Working Principle Electromechanical
Housing Construction Form Norm construction design
EAN 4030660000000
eCl@ss Number, Version 9.0 27-37-12-43
Coding Level According to EN ISO 14119 Low
ETIM 7.0 EC002925
ETIM 6.0 EC002033
eCl@ss Number, Version 11.0 27-27-26-03
Cable Note All indications including the conductor ferrules.
Maximum Ambient Temperature (°C) 70
Maximum Cable Cross Section (mm²) 1 x 1.0 , flexible
Minimum Cable Cross Section (mm²) 0.75
Storage Temperature (°C) -25 to 70
Contact Material Silver
Maximum Actuating Speed (m/s) 0.5
Maximum Fuse Rating 6 A (slow blow)
Minimum Actuating Speed (mm/min) 1
Minimum Mechanical Life 10000000 Operations
Minimum Positive Break Force (N) 20
No. of Auxiliary Contacts 1
No. of Safety Contacts 1
Overvoltage Category 3
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 400
Rated Short-circuit Current (A) 1000
Resistance to Shock (g/ms) 30 / 11
Switching Element Opener (NC)
Switching Principle Slow action
Terminal Type Screw terminals M20 x 1.5
Thermal Test Current (A) 16
Utilisation Category DC-13 | AC-15
Utilisation Category DC-13 0.05 A
Sensor Length (mm) 46.5
Sensor Height (mm) 92.5
Degree of Protection IP65
Standards EN IEC 60947-5-3 / BG-GS-ET-14
