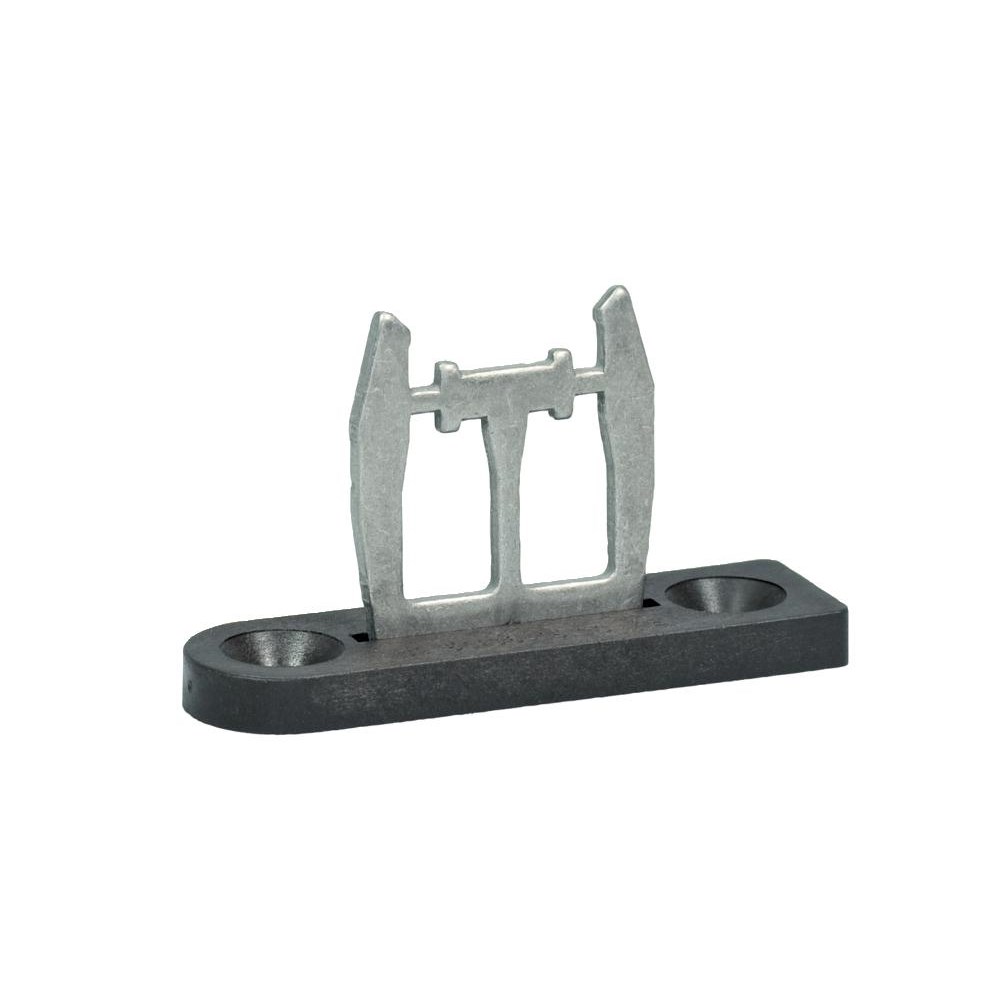

SCHMERSAL AZM 161-B1 SOLENOID INTERLOCK 101145117

Product Code: 101145117

Enhance your machine safety with the Schmersal AZM161 Series solenoid interlocks, featuring a durable stainless steel straight actuator. Designed for reliability in safeguarding and interlocking, this product is a robust solution for industrial safety applications.

Technical Specifications

Actuator Type Roller lever
Enclosure Material Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Gross Weight (g) 71.34
Net Weight (g) 1900
Wire Cross-Section 13 AWG
Enclosure Coating Material Painted
Minimum Ambient Temperature (°C) -30
Brand SCHMERSAL
Series AZM161
Working Principle Electromechanical
Housing Construction Form Norm construction design
EAN 4030660000000
eCl@ss Number, Version 9.0 27-27-26-92
Coding Level According to EN ISO 14119 Low
ETIM 7.0 EC001038
ETIM 6.0 EC002593
eCl@ss Number, Version 11.0 27-37-12-11
Cable Note All indications including the conductor ferrules.
Maximum Ambient Temperature (°C) 70
Maximum Cable Cross Section (mm²) 2.5
Minimum Cable Cross Section (mm²) 0.75
Storage Temperature (°C) -40 to 85
Contact Material Silver
Maximum Actuating Speed (m/s) 1
Maximum Fuse Rating 6 A gG D-fuse
Minimum Actuating Speed (mm/min) 1
Minimum Mechanical Life 10000000 Operations
Minimum Positive Break Force (N) 19
No. of Auxiliary Contacts 1
No. of Safety Contacts 1
Overvoltage Category 3
Rated Impulse Withstand Voltage (kV) 2.5
Rated Insulation Voltage (V) 500
Rated Short-circuit Current (A) 1000
Resistance to Shock (g/ms) 30 / 11
Switching Element 1 NO contact, 2 NC contacts
Switching Principle Slow action
Terminal Type Connector M8
Thermal Test Current (A) 0.25
Utilisation Category DC-13 | AC-15
Utilisation Category DC-13 0.25 A
Sensor Length (mm) 44
Sensor Height (mm) 75
Degree of Protection IP67 / IP65
Standards EN IEC 60947-5-3 / BG-GS-ET-14
