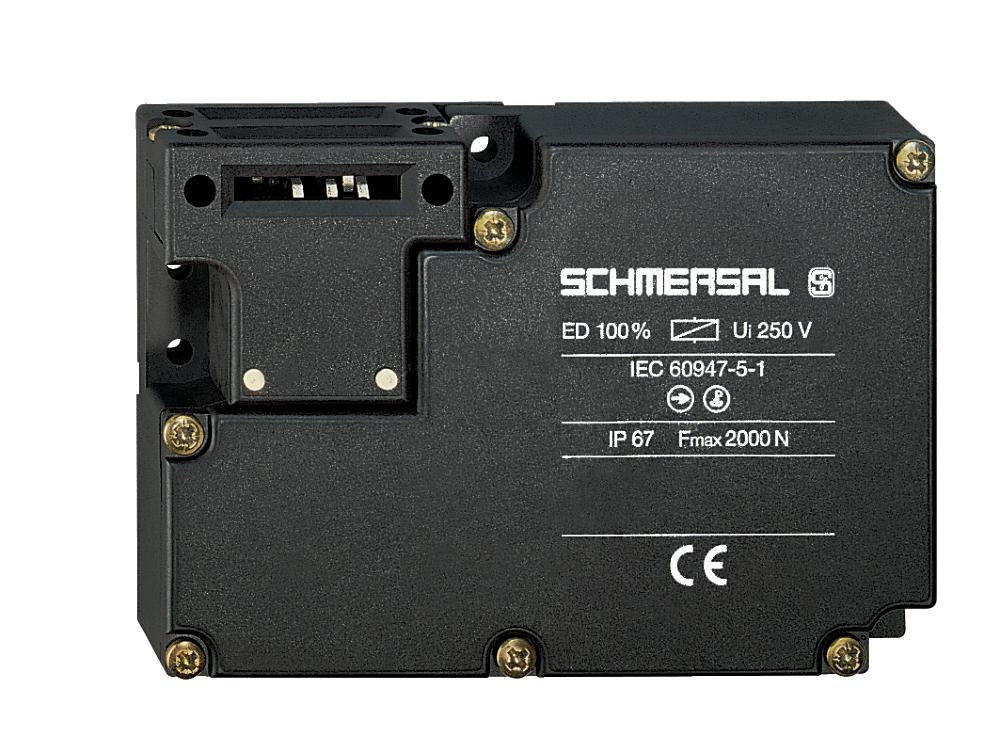

SCHMERSAL AZM161SK-12/12RK-M16-24V SOLENOID INTERLOCK 101164207

Product Code: 101164207

The Schmersal AZM161 Series solenoid interlock is a robust machine safety solution designed to ensure secure power locking with a manual release option. This device features three actuating directions, enhancing its versatility in various applications. It comes equipped with two auxiliary contacts and four safety contacts, ensuring reliable integration into safety systems. The interlock utilizes screw terminals for secure connections and supports both NO and NC contact configurations. With a thermal test current of 6 A and a rated control voltage of 24 VAC/DC, this solenoid interlock is suitable for diverse operational environments. It adheres to utilisation categories AC-15 (230 VAC at 4 A) and DC-13 (24 VDC at 2.5 A), confirming its capability to handle different loads reliably. Engineered for machine safety applications, the Schmersal AZM161 is an essential component for engineers looking to maintain high standards of safety without compromising on functionality or performance.

Technical Specifications

Actuator Type Plunger
Enclosure Material Plastic, glass-fibre-reinforced
Gross Weight (g) 5072
Net Weight (g) 59.16
Wire Cross-Section 23 AWG
Maximum Temperature (°C) 60
Minimum Ambient Temperature (°C) -30
Minimum Temperature (°C) -25
Brand SCHMERSAL
Series AZM161
Working Principle Electromechanical
Housing Construction Form Norm construction design
EAN 4030660000000
eCl@ss Number, Version 9.0 27-27-26-06
ETIM 7.0 EC001258
ETIM 6.0 EC001471
eCl@ss Number, Version 11.0 23-13-01-06
Cable Note All indications including the conductor ferrules.
Maximum Ambient Temperature (°C) 75
Maximum Cable Cross Section (mm²) 1.5
Minimum Cable Cross Section (mm²) 0.5 rigid | 0.5 flexible
Contact Material Silver
Maximum Actuating Speed (m/s) 0.5
Maximum Fuse Rating 6 A gG D-fuse
Minimum Mechanical Life 1000000 Operations
No. of Auxiliary Contacts 1
No. of Safety Contacts 2
Overvoltage Category 3
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 50
Rated Short-circuit Current (A) 400
Switching Element Normally open contact (NO)
Switching Principle Snap action
Terminal Type Cable
Utilisation Category DC-13 | AC-15
Sensor Length (mm) 37
Sensor Height (mm) 92.5
Degree of Protection IP67
Standards EN IEC 60947-5-1 / DIN VDE 0660-200 / BG-GS-ET-15
