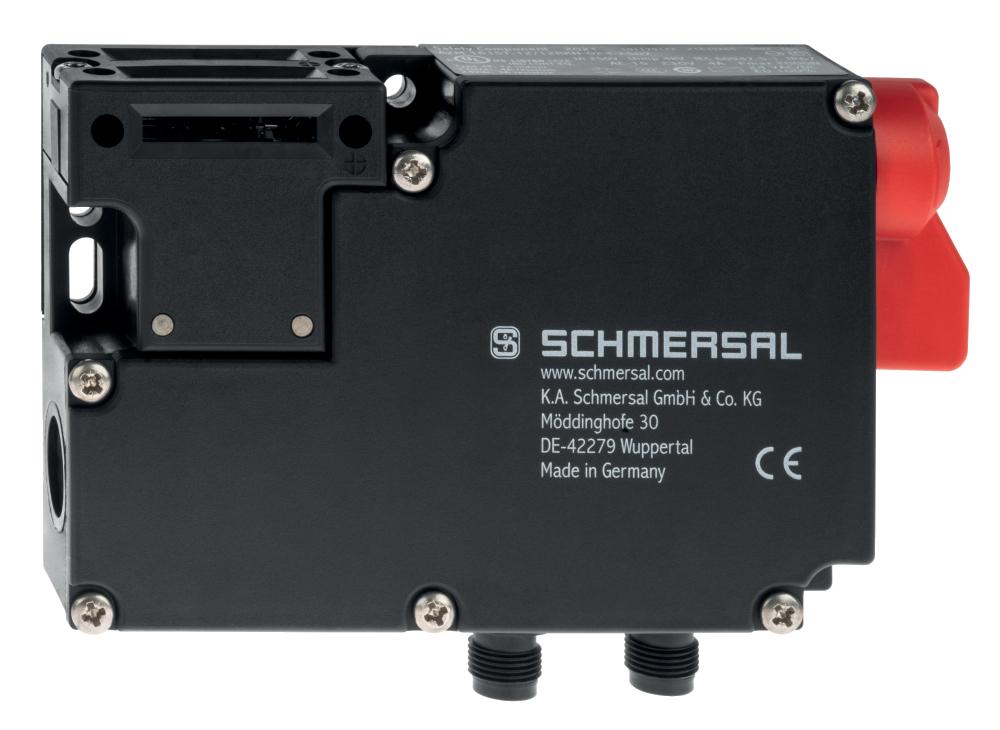

SCHMERSAL ENCLOSED SOLENOID INTERLOCK 101179122

Product Code: 101179122

Technical Specifications

Actuator Type Plunger
Enclosure Material Metal, zinc die-cast
Gross Weight (g) 226
Net Weight (g) 50
Minimum Ambient Temperature (°C) -30
Brand SCHMERSAL
Working Principle RFID
EAN 4030660000000
eCl@ss Number, Version 9.0 27-27-26-01
ETIM 7.0 EC000030
ETIM 6.0 EC000030
eCl@ss Number, Version 11.0 27-27-26-01
Cable Note All indications including the conductor ferrules.
Maximum Ambient Temperature (°C) 65
Maximum Cable Cross Section (mm²) 1.5
Minimum Cable Cross Section (mm²) 0.25
Contact Material Silver
Maximum Actuating Speed (m/s) 0.5
Maximum Fuse Rating 6 A gG D-fuse
Minimum Mechanical Life 10000000 Operations
No. of Safety Contacts 3
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage (V) 500
Rated Short-circuit Current (A) 100
Switching Element NO contact, NC contact
Switching Principle Snap action
Terminal Type Screw terminals M20 x 1.5
Utilisation Category DC-13 | AC-15
Utilisation Category DC-13 2.5 A
Sensor Length (mm) 30
Sensor Height (mm) 116.6
Degree of Protection IP67
Standards EN IEC 60947-5-1 / EN IEC 60947-1
